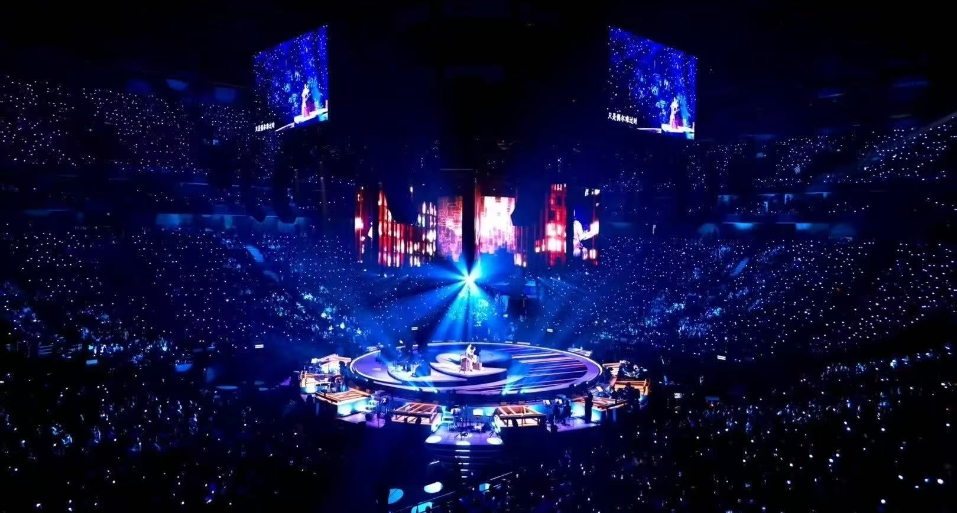

Ideal for large-scale shows requiring dynamic motion control. The system enables precise synchronization across multiple devices, ensuring smooth and safe performance execution even for intricate stage setups.
l Safety certification: TUV Rheinland certified SIL3 safety level
l Control object: Chain hoist, lifting platform, trolley, screen, etc.
l Motor: Servo motor, 3-phase asynchronous motor
l Redundancy: Ring network, multi-console
l External trigger: DMX, LTC time code
l Direct nodes: 1 control system to 128, and 1 console to 1024
l Safety protection: Over range, limit, under&overload, speed&position deviation
l Control mode: Speed closed loop, position closed loop
l Encoder: 2 encoders: incremental & absolute
l Compatible hoists: CM, GIS, LIFTKIT, EXTRA-T, etc.

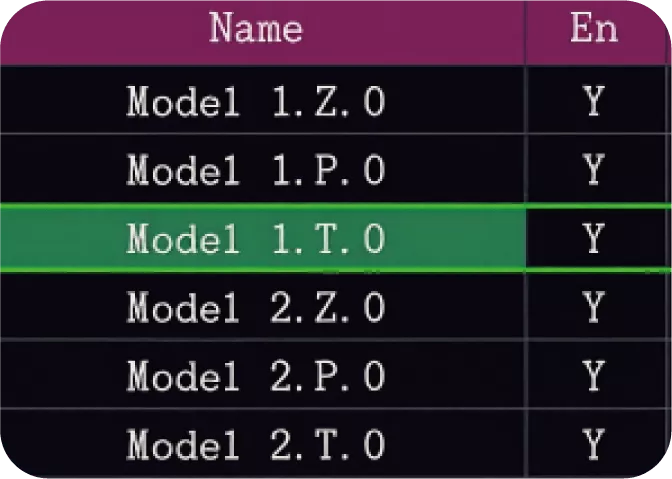

Object GroupingSimplified Programming:
Object-based control enables synchronized movement of multiple control points.
Complex Motion Control:
Create advanced movements by setting object angles and heights.
Anti-Sway TechnologyEnhance Safety:
Minimizes risks from falling or swinging equipment, ensuring safer operation for performers and crew.
Improve Precision:
Ensures accurate positioning of stage elements for smoother and more professional productions.

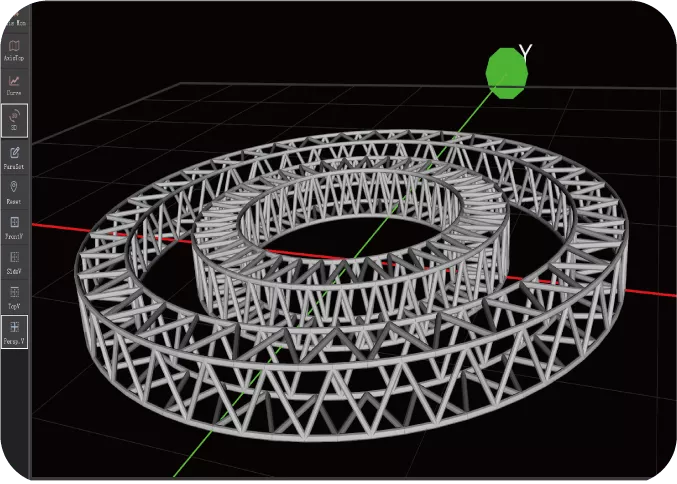

3D VisualizationSupports real-time 3D display of equipment status and operational movements, with offline simulation capability.

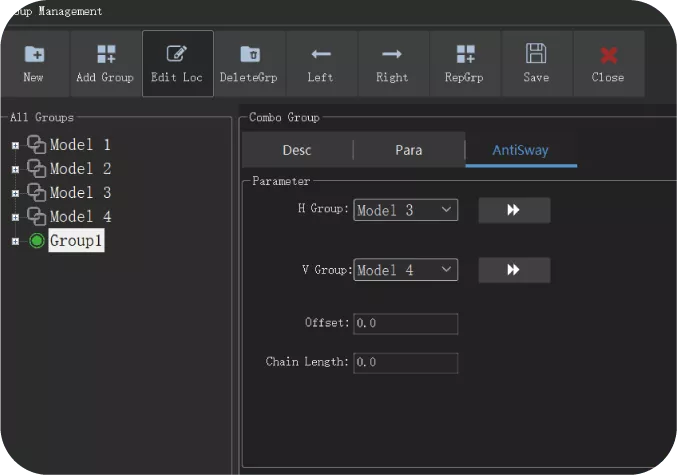

Combined GroupingSupports safety groups, synchronous groups, object groups, V-shape groups, and anti-sway groups, enabling flexible combination and programming.

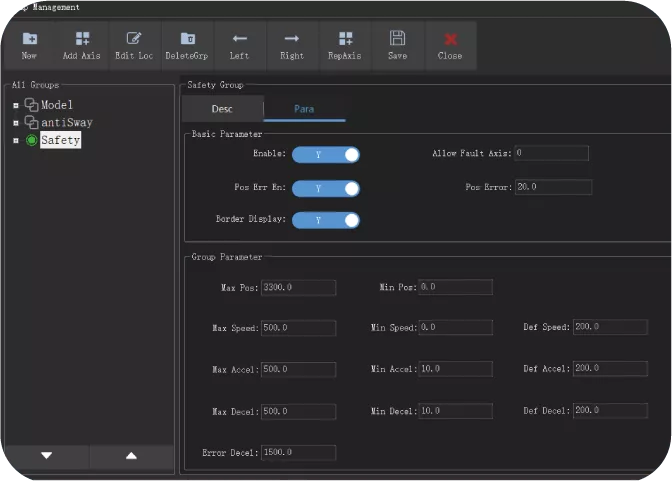

Safety GroupingBoost Safety:
Automatically stops the entire system when a safety issue is detected at any control point.
IAC distributed control system has been certified by the U.S. TUV Rhineland professional institution, in line with SIL3 professional standards.
What We Can Control
——

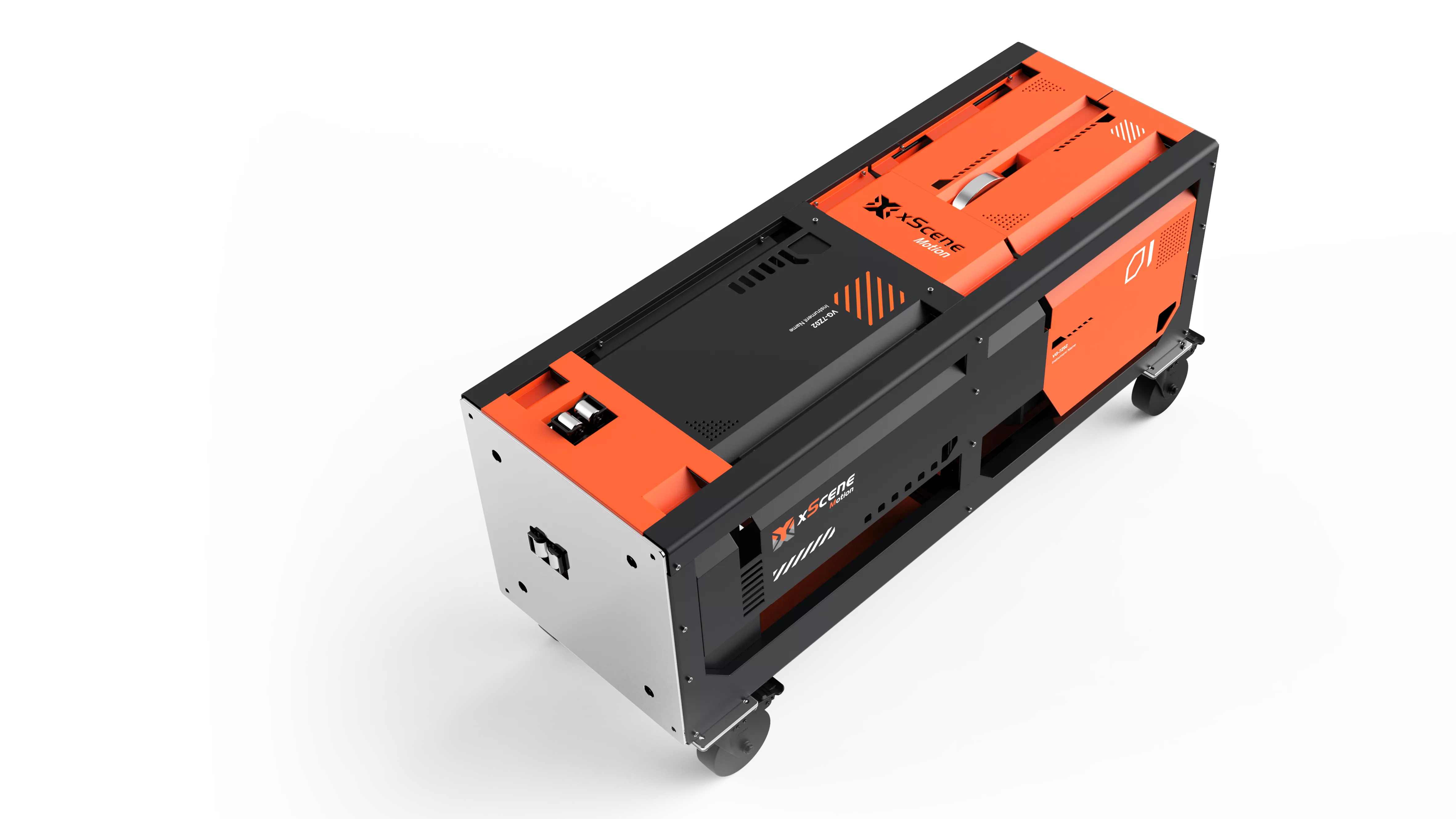

Winch

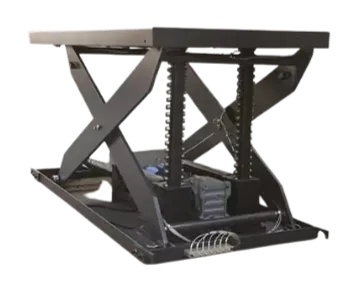

Stage Lift

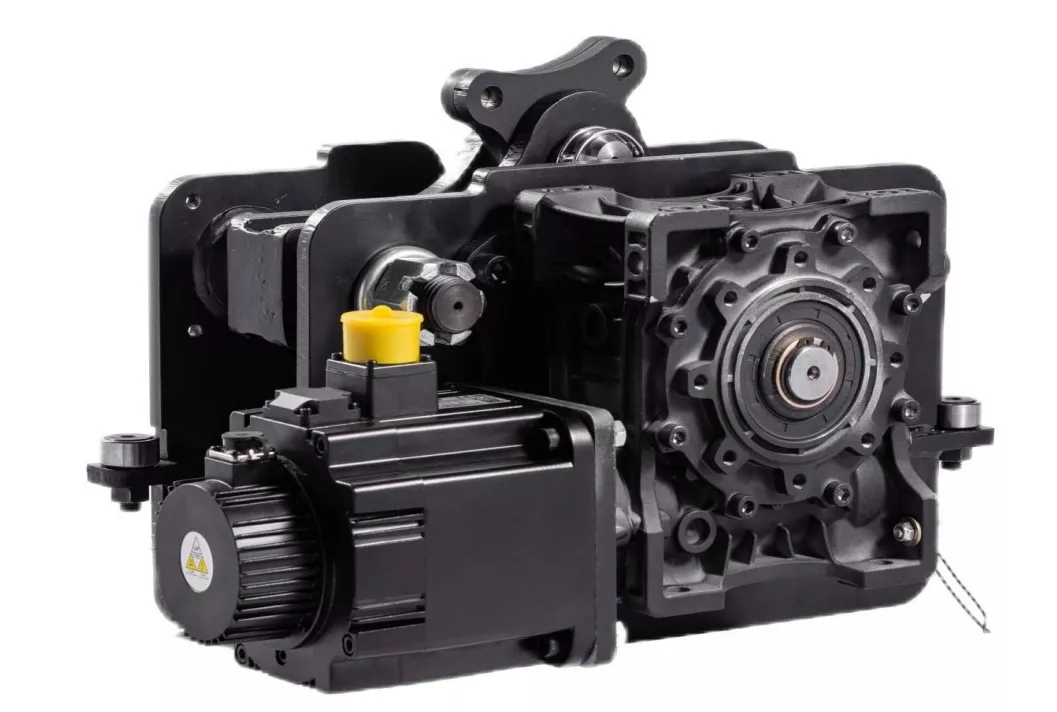

Trolley
Turntable

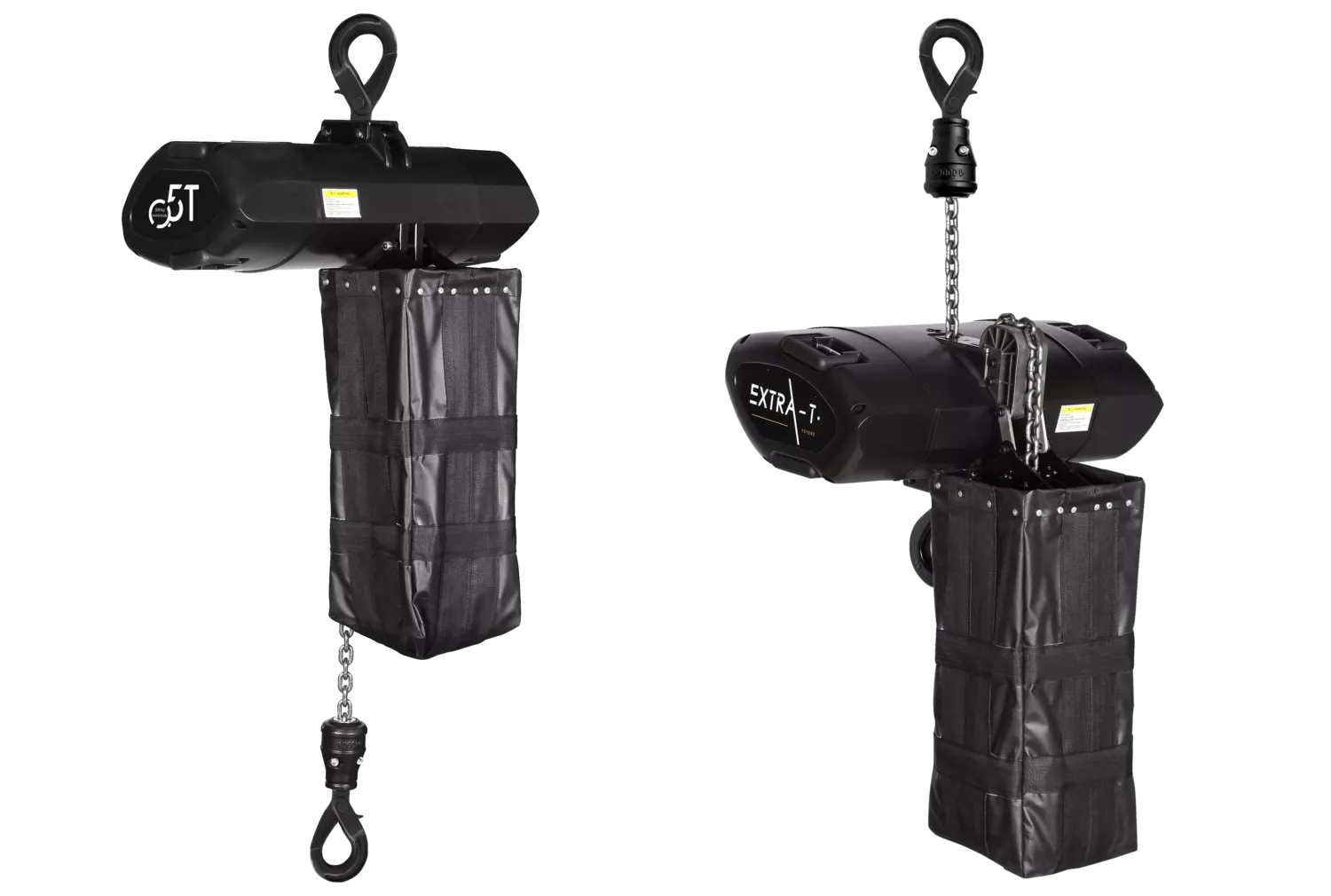

Chain Hoist
