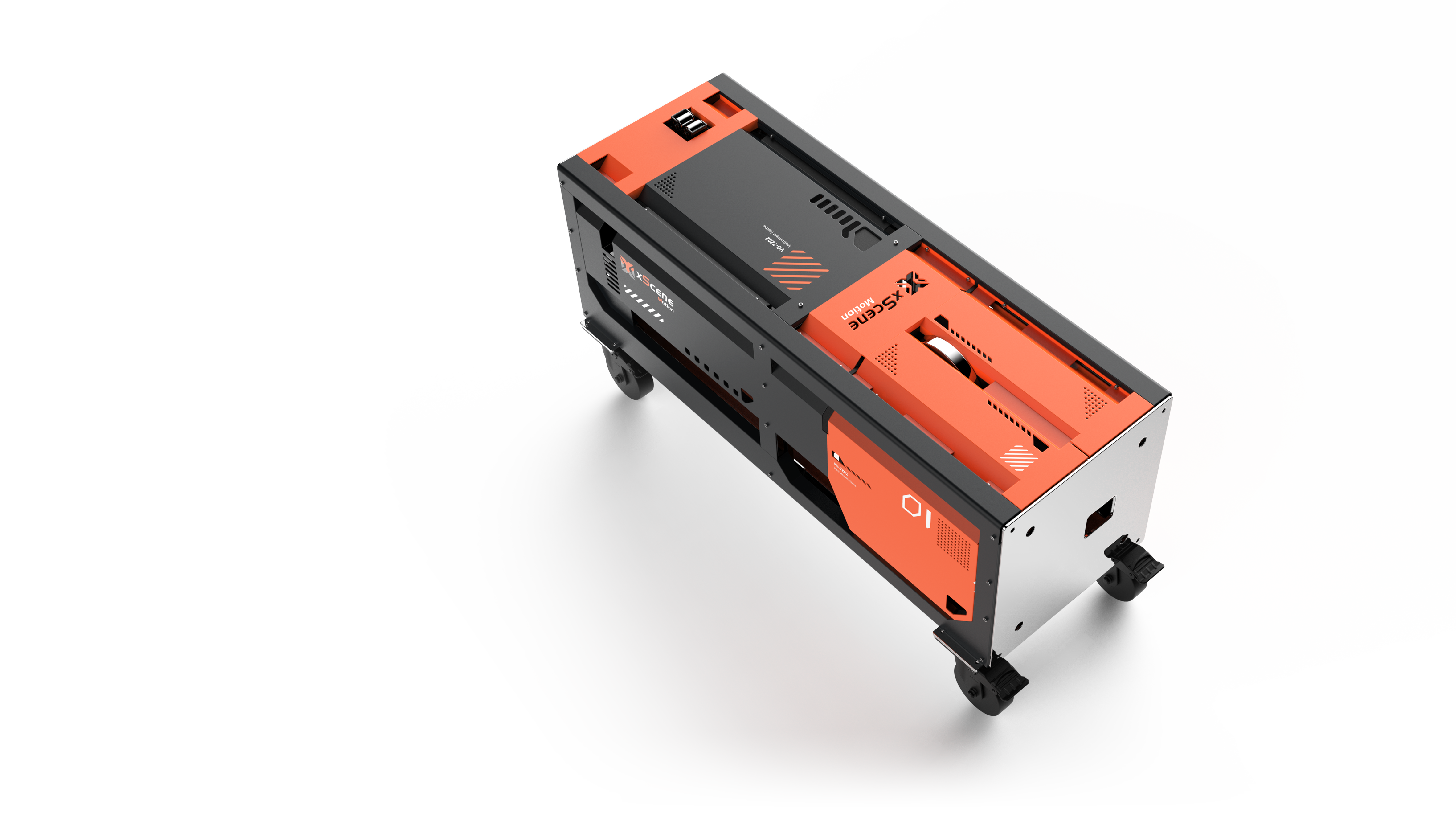

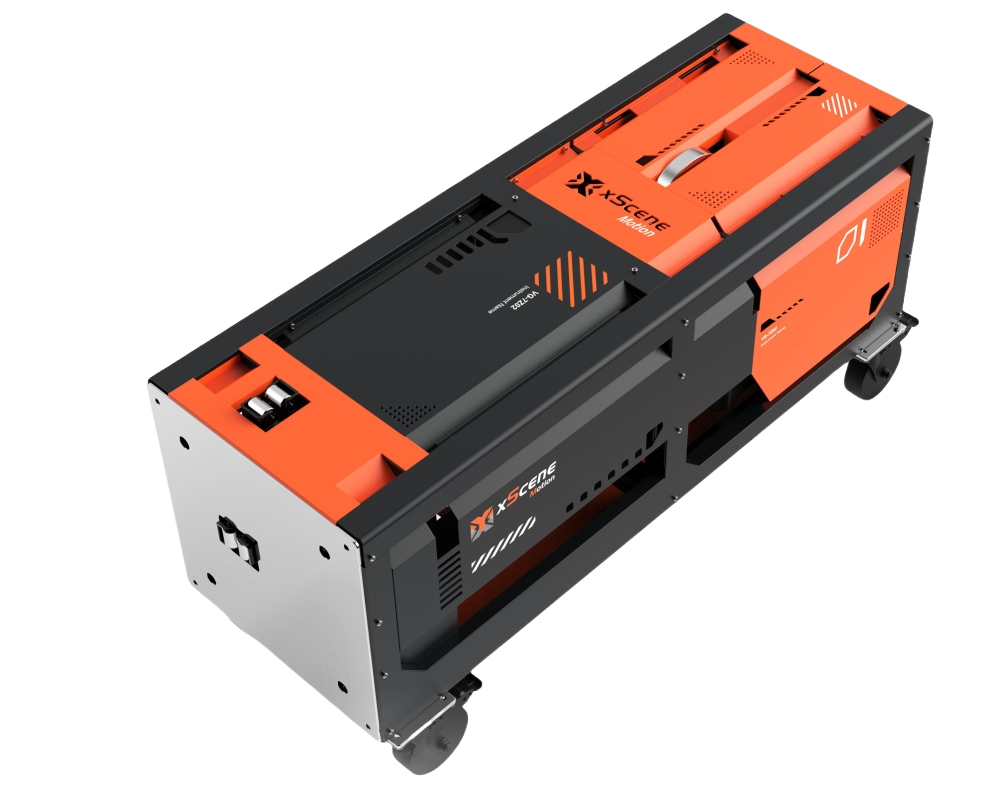

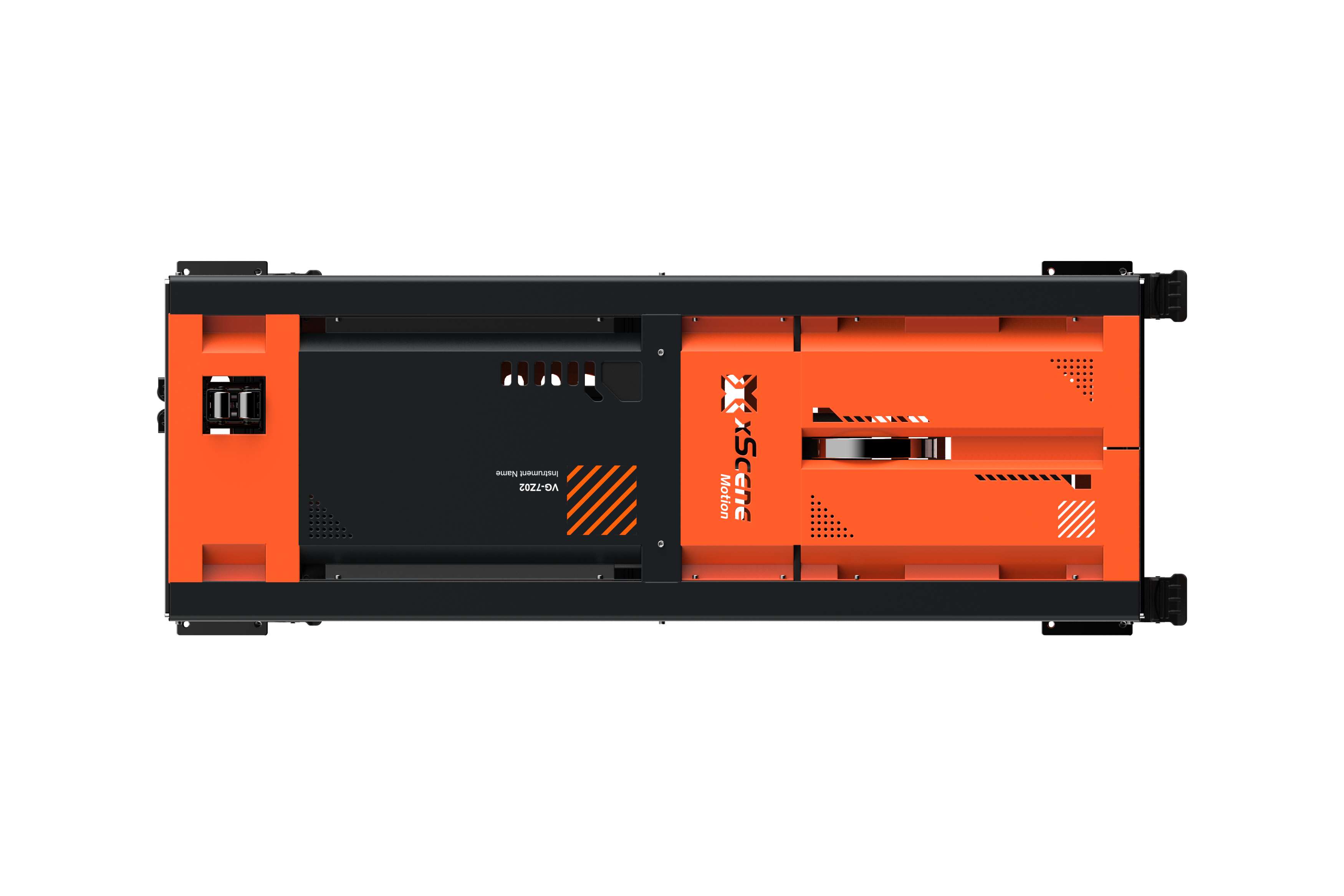

EXTRA-X Winch is ahigh-performance high speed winch designed for versatile applications in theentertainment, touring, and event industries. It features a variable speedoperation, with a load capacity of up to 250 kg, hoisting speeds adjustablecontinuously from 0 to 1.8 meters per second, a maximum acceleration of 1.8 m/s², and a hoisting height of up to 40meters.
WINCH SPECIFICATIONS:
Safe Working Load: 250kg
Lifting Speed: 1.8 m/s
Acceleration: Max 1.8 m/s²
Lifting Height: Max 40m
Motor Power: 5.5kW
Duty Cycle: 20%
Brakes: 2 (with feedback detection)
Absolute Encoder: 1, 29-bit
Incremental Encoder: 1
Motor Thermal Protection: 1
Limit Switch: 4-point limit
Rope Disorder Switches: 2
Full Rope Switches: 2
Load Cells: 2 (independent measurement with cross-comparison)
Dimensions: 1500 × 517 × 517 mm
Weight: 200kg
