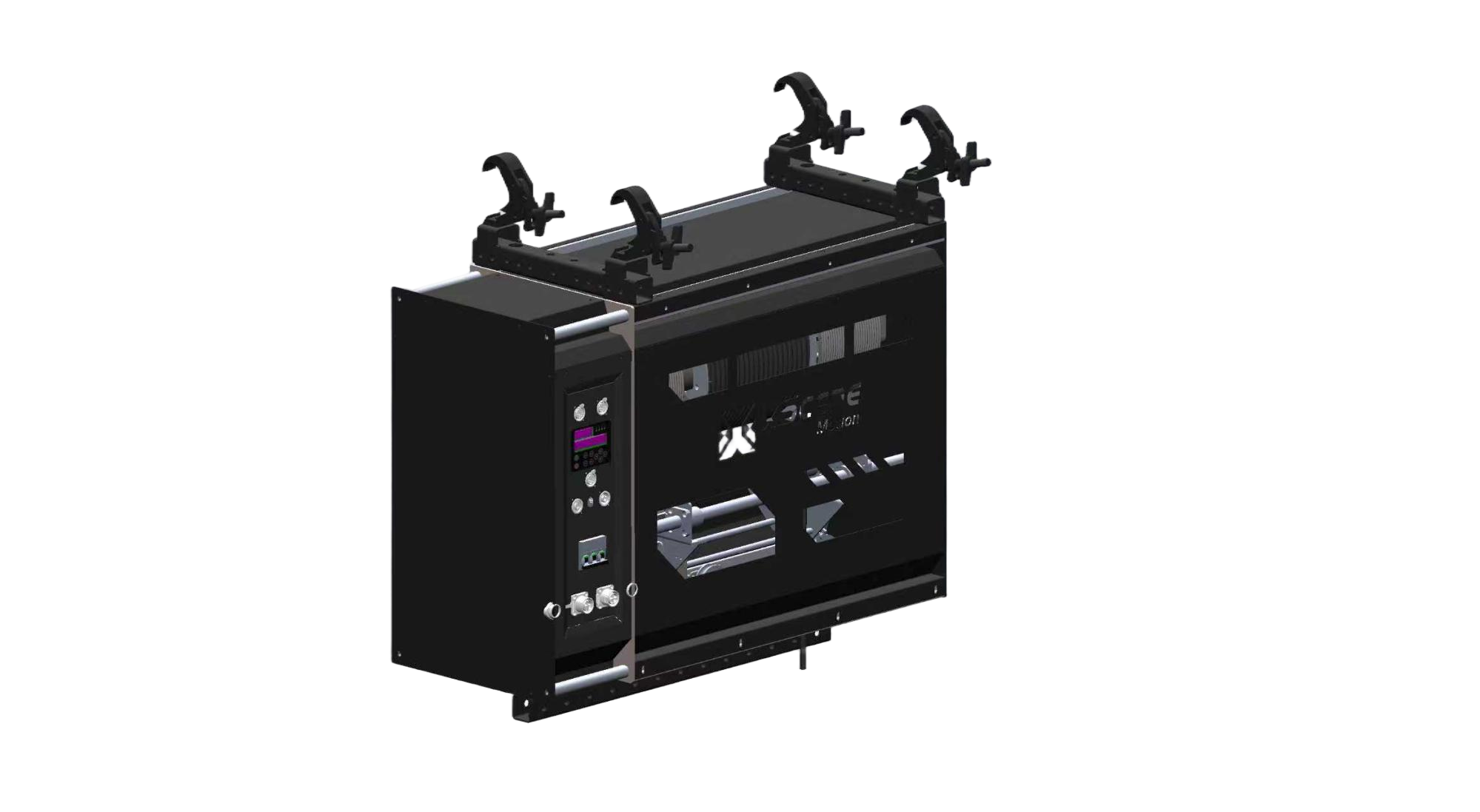

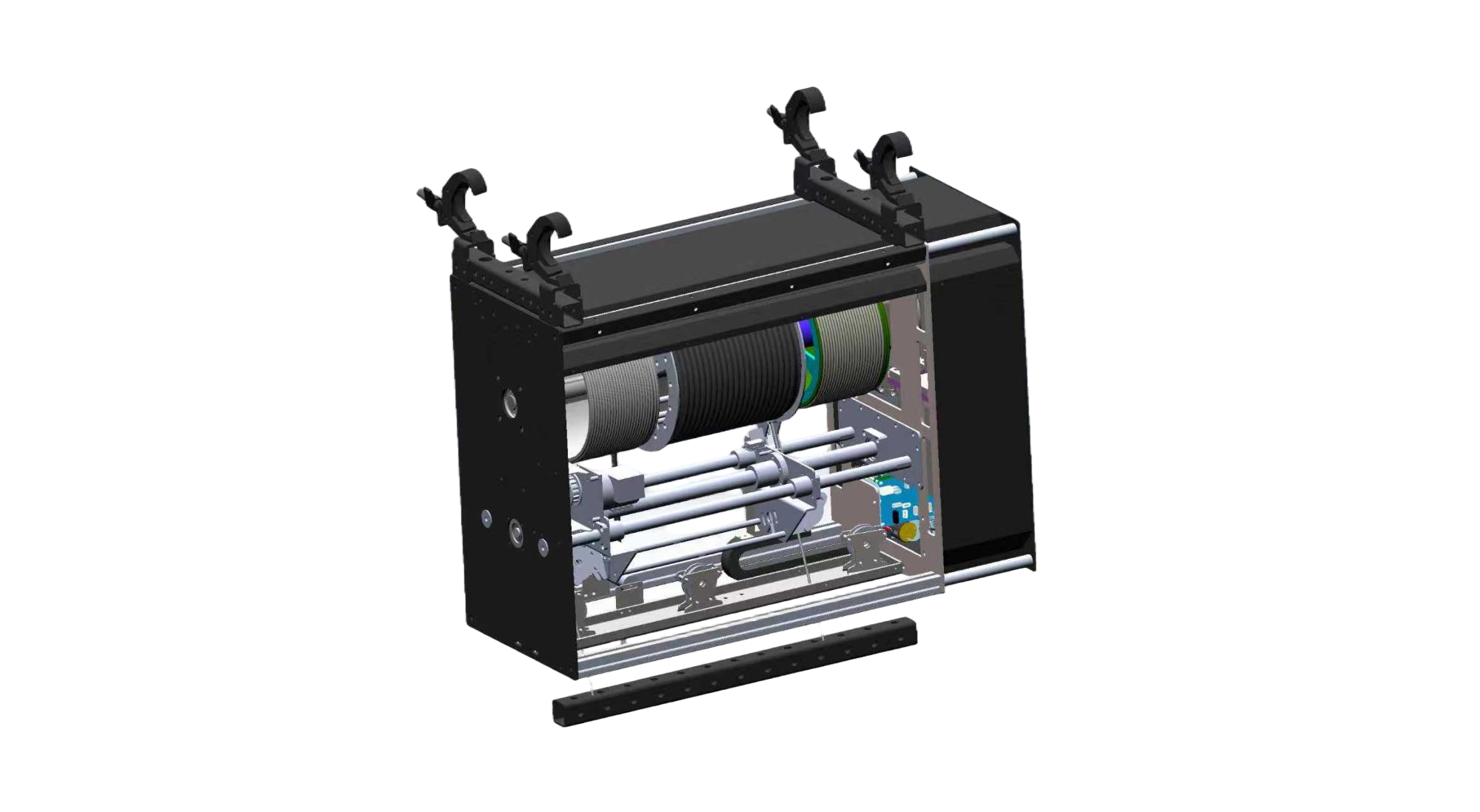

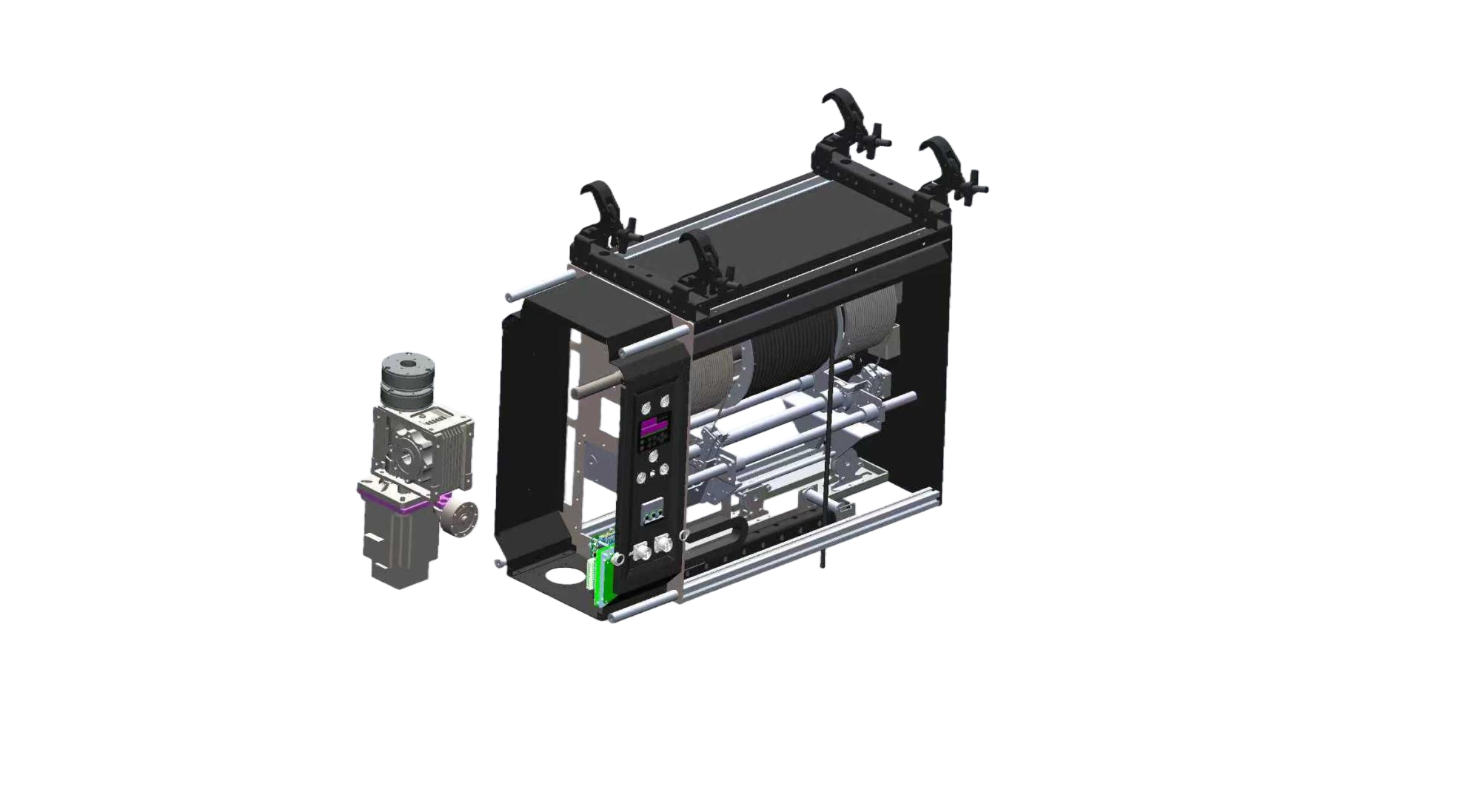

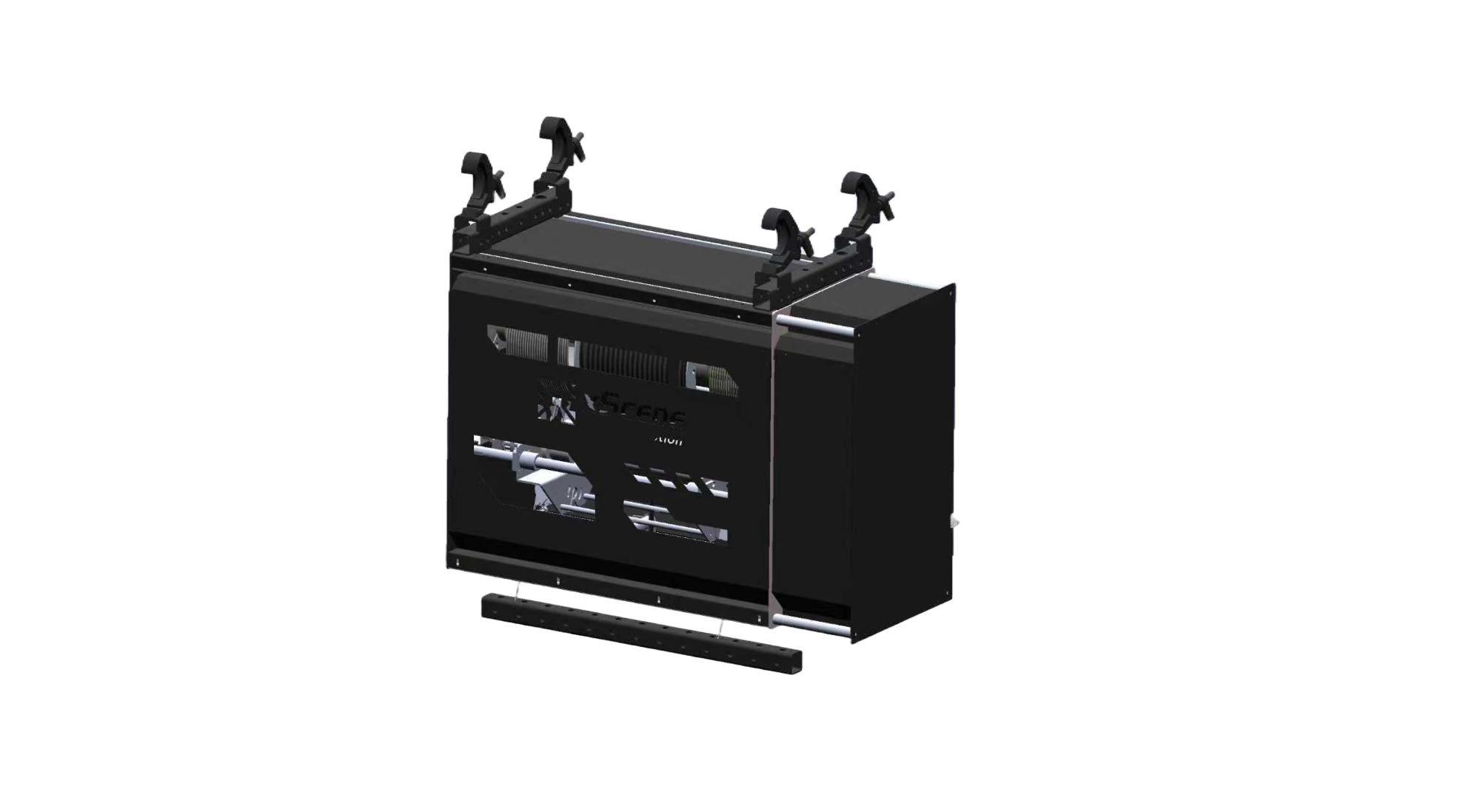

EXTRA-X DOUBLE Winch
EXTRA-X DOUBLE Winch is a winch for stage use, mainly for use in theatres, shows and concerts. It lifts props and actors in and out of the stage sphere at a maximum load of 100 kg up and down. It requires only a power and data connection, has a built-in drive, and is controlled by IAC Kinetic Control System with Aurora Console.
Entertainment Load Limit (ELL) | 100 kg | Max No. of Daisy-Chained Units | Power: 8 Data: No practical limit |
Lifting Height | 12.5 m | Voltage | 400 VAC, 50-60 Hz |
Lifting Speed | 0 -1.0m/s | Drive Type | Integrated drive |
Positioning Accuracy | 1 mm | Winch Mains Power (In / Thru) | Quick-release circular power connector |
Dimensions | 870 × 350 × 660 mm | Winch Data | 2x Neutrik Ethercon (In & Thru) |
Weight | 100 kg | Passthrough Power | 2x powerCON TRUE1 (In & Thru) |
Noise Emission | 50dB(A) @1m | Passthrough Data | 1x etherCON (In) |
Max Duty Cycle | M5 |
Lifting Wire Type | 4 mm, 7x 19 steel wire rope | Load Monitoring | Underload and overload detection |
Lifting Wire Quantity | 2 | Slack Monitoring | 2 |
Lifting Wire Safety Factor | >10 | Encoders | Dual encoders |
Lifting Bar Power | 16A/240VAC (3x 1.5mm2 / AWG 16) | Brakes | Dual, low-noise |
Lifting Bar Ethernet | 1000 Mbit/s (4 twisted pairs) | Display | Segment display with button interaction |
Limits | 2 ultimate limits, 2 initial limits |
