Wireless Load Cell
Stage Setup
Its wireless design allows quick installation, making it ideal for touring shows and temporary stages. The system provides real-time display of suspension point loads and issues safety alerts, ensuring secure rigging operations. Functioning solely as a monitoring tool, it does not participate in active control and is typically used during setup and inspection.
Standard Load Cell

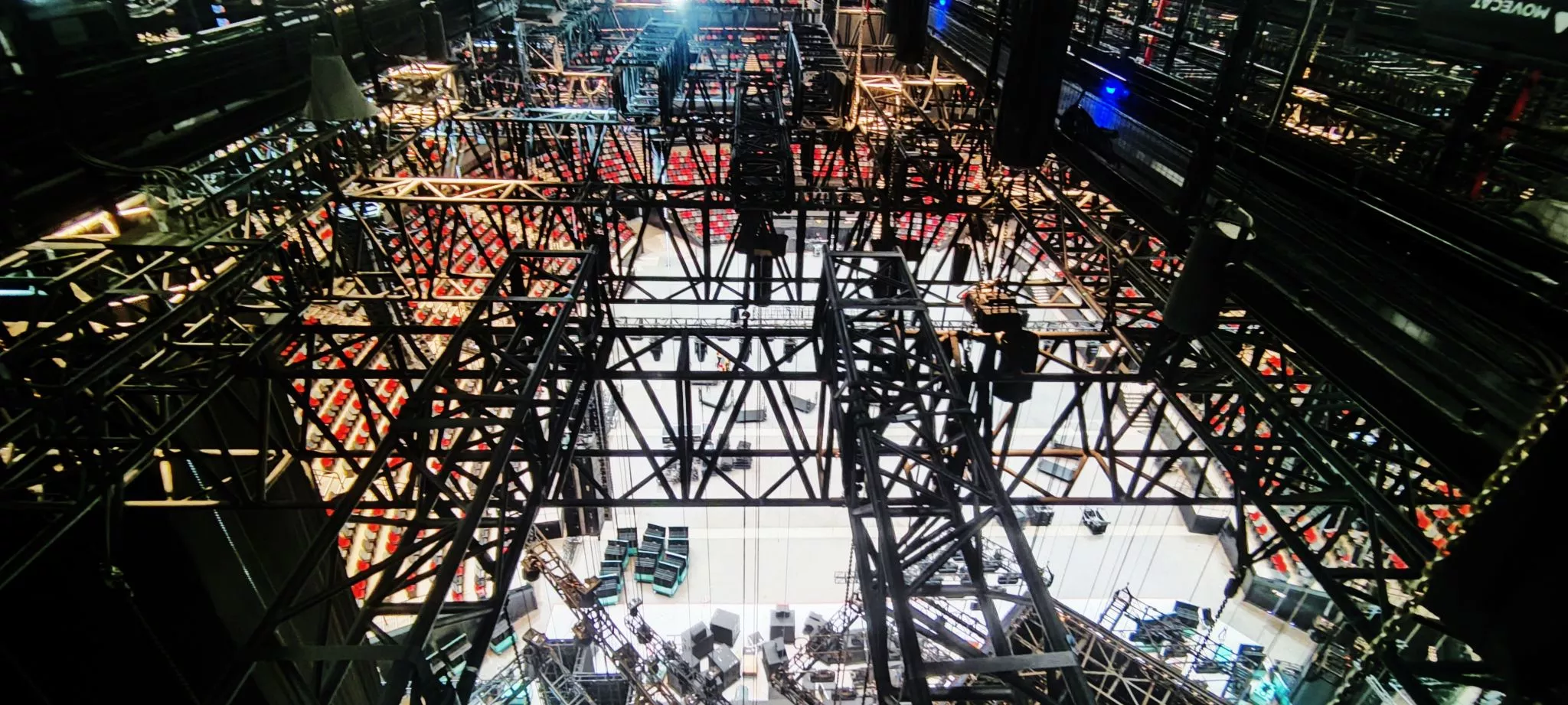

Permanent Venues and Live Performances Suited for theaters, stadiums, and convention centers where continuous load supervision is critical. With stable wired connections, the system provides both monitoring and active control, allowing integration with controllers to protect loads during live shows. It ensures reliable, long-term operation with high safety standards.

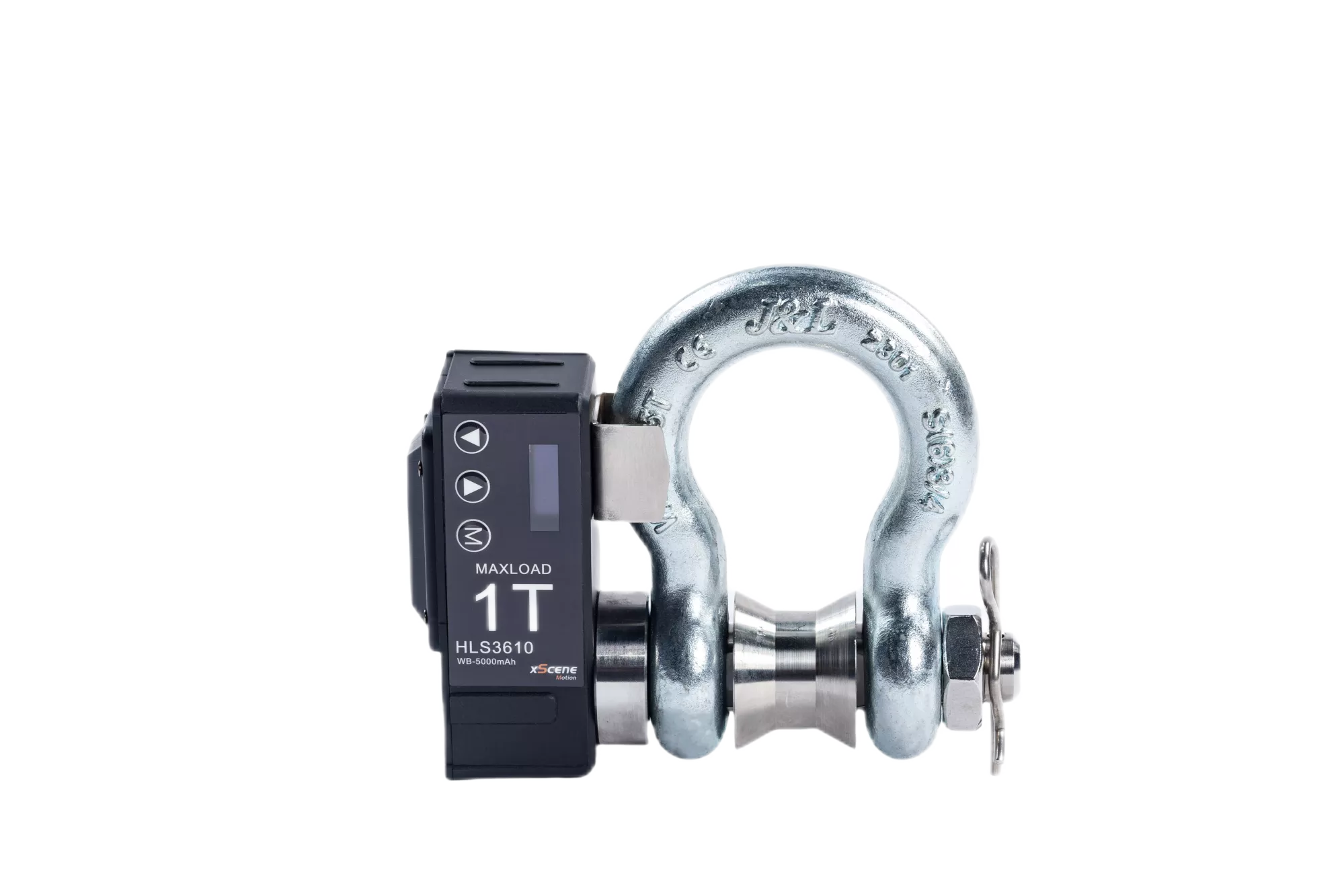

Wireless Bluetooth Load Cell

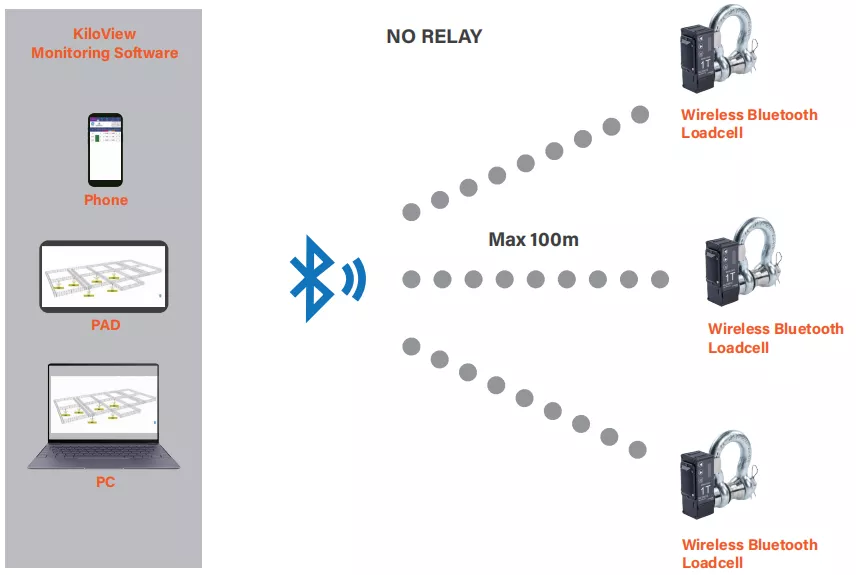

l Wireless range: 2.4G communication, up to 100 m
l Long Battery Life: Up to 180 days on internal battery
l Easy Charging: Standard Type-C port
l Cable-Free Setup: No extra wiring after installation
l Cross-Platform Software: Works on PC, tablet and smartphone，Android & iOS compatible
l Safety protection: Protection of alarm, underload, and overload
Standard Load Cell
l Safety factor: High safety factor, provide 10x safety protection
l Measuring range: 1T~5T, 150%F.S overload capacity

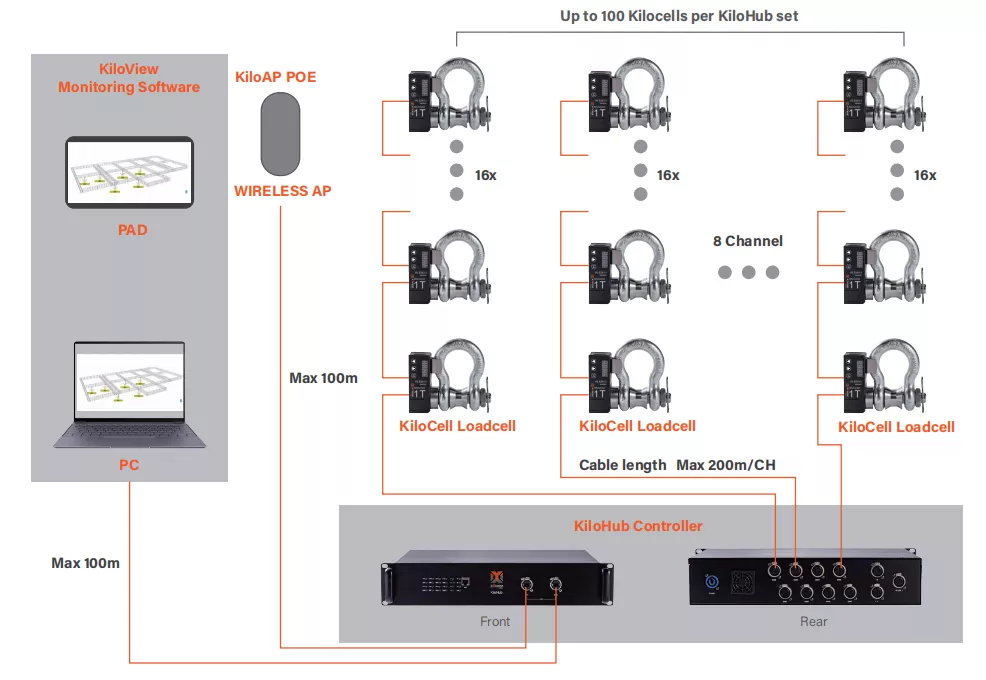

l Connections: Composite power supply, communication cables, single point, and Daisy chain

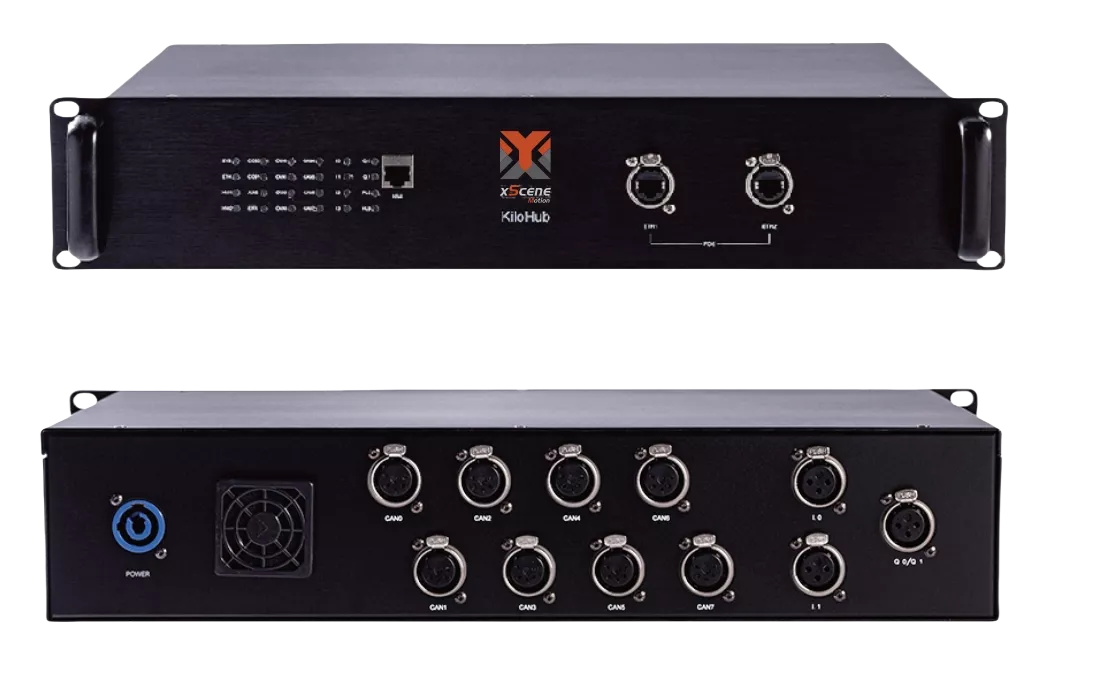

l Controller: 1 controller controls up to 100 load cells
l Output Options：CANopen, current, RS-485, and custom outputs

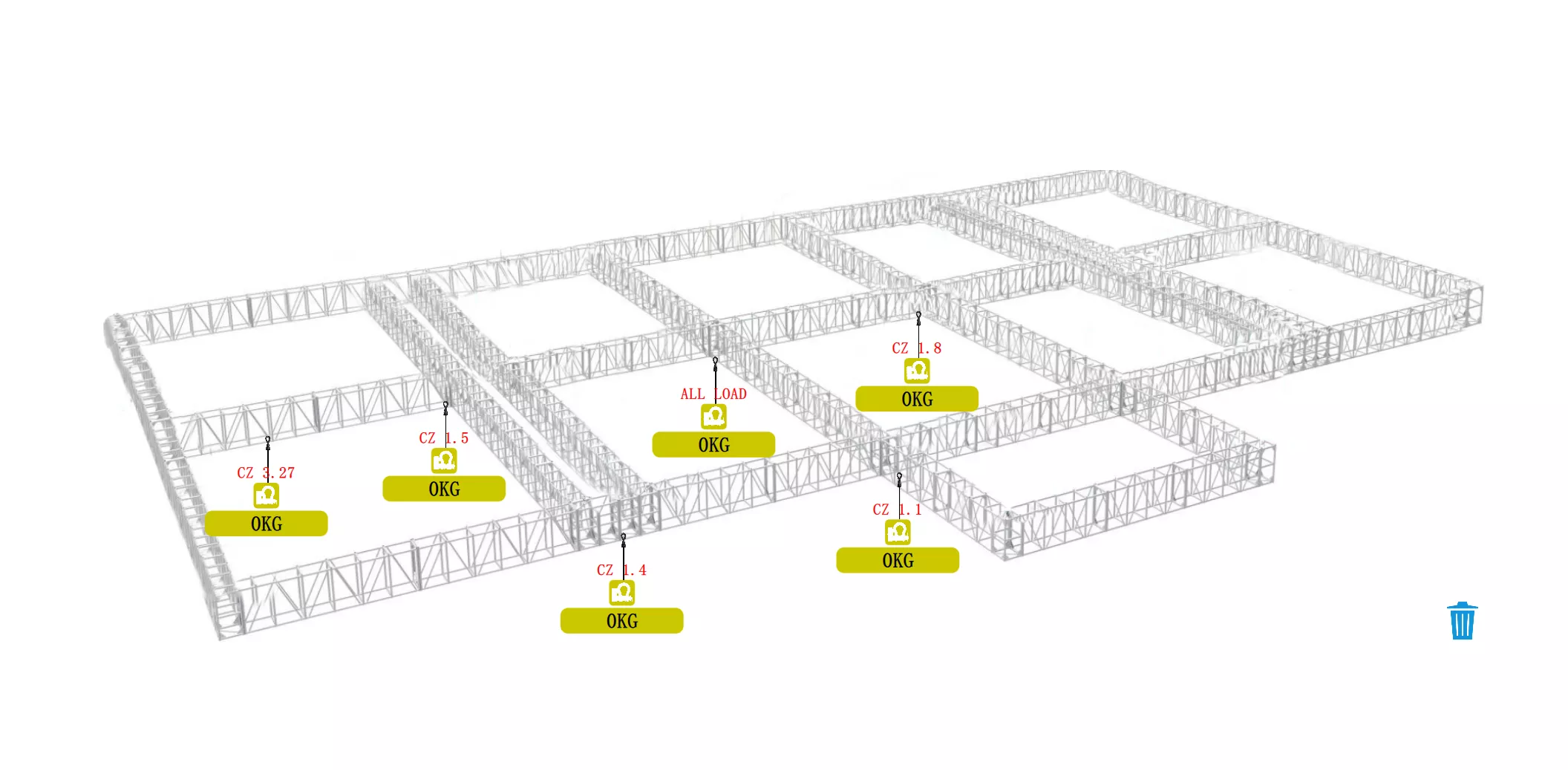

l Data recording: Real-time load monitor and real-time running data recording
l Safety protection: Protection of alarm, underload, and overload
Third-Party Test Report

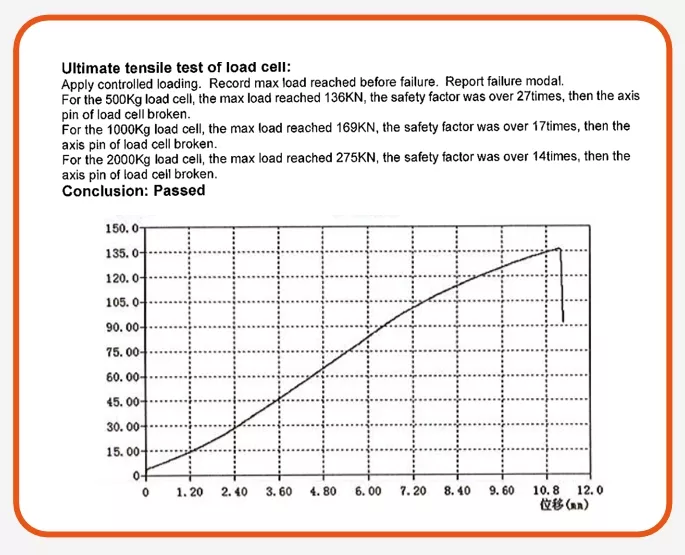

Tensile Test of Load Cell
