l Safety certification: TUV Rheinland certified SIL3 safety level
l Control object: Chain hoist, lifting platform, track car, screen, etc.
l Motor: Servo motor, 3-phase asynchronous motor
l Redundancy: Ring network, multi-console
l External trigger: DMX, LTC time code

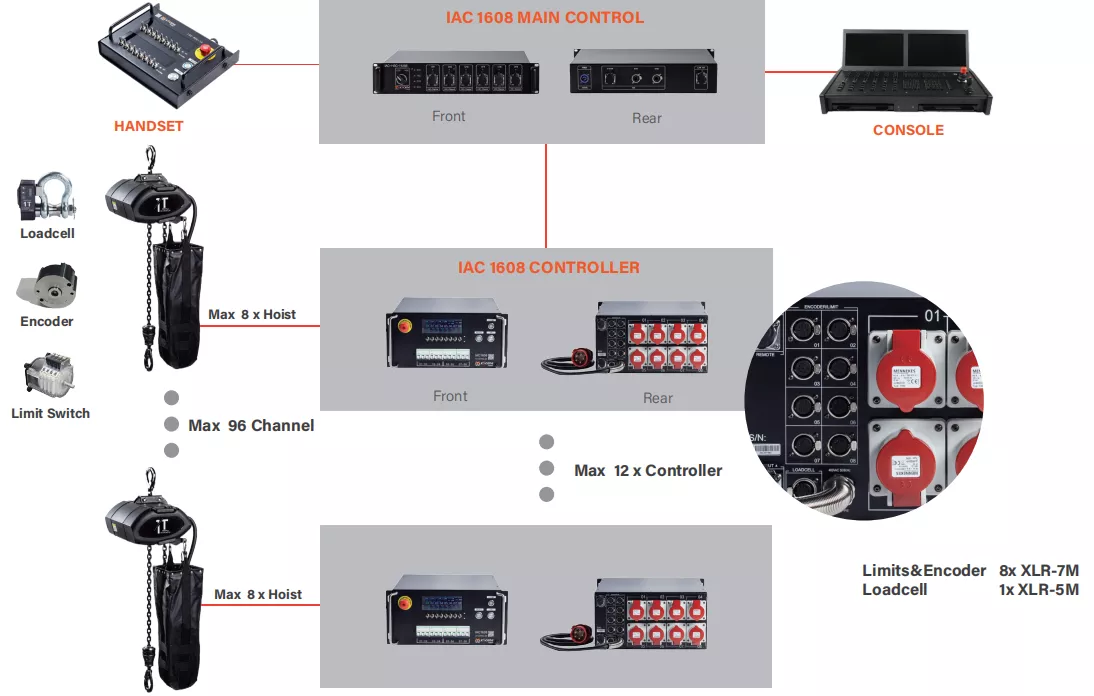

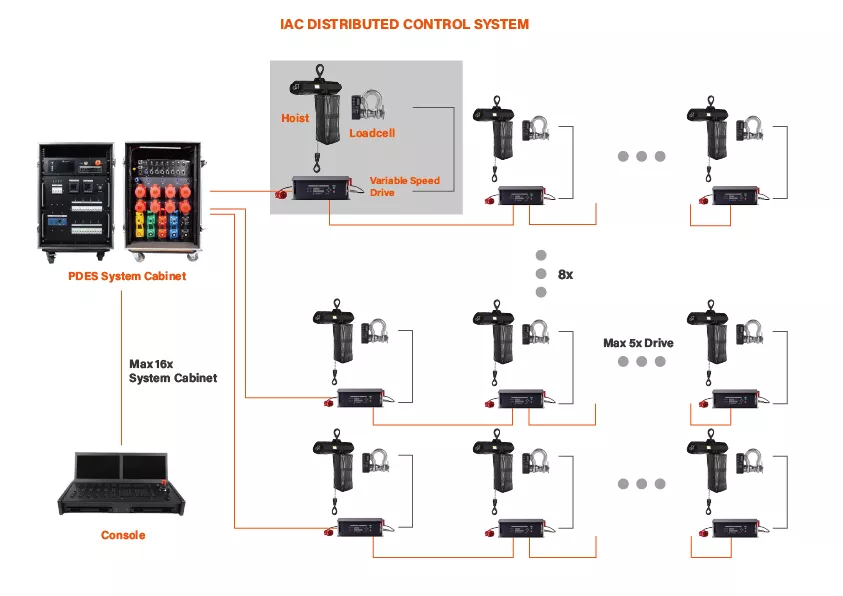

l Direct nodes: 1 control system to 128, and 1 console to 1024
l Safety protection: Over range, limit, under&overload, speed&position deviation
l Control mode: Speed closed loop, position closed loop;
l Encoder: 2 encoders: incremental & absolute

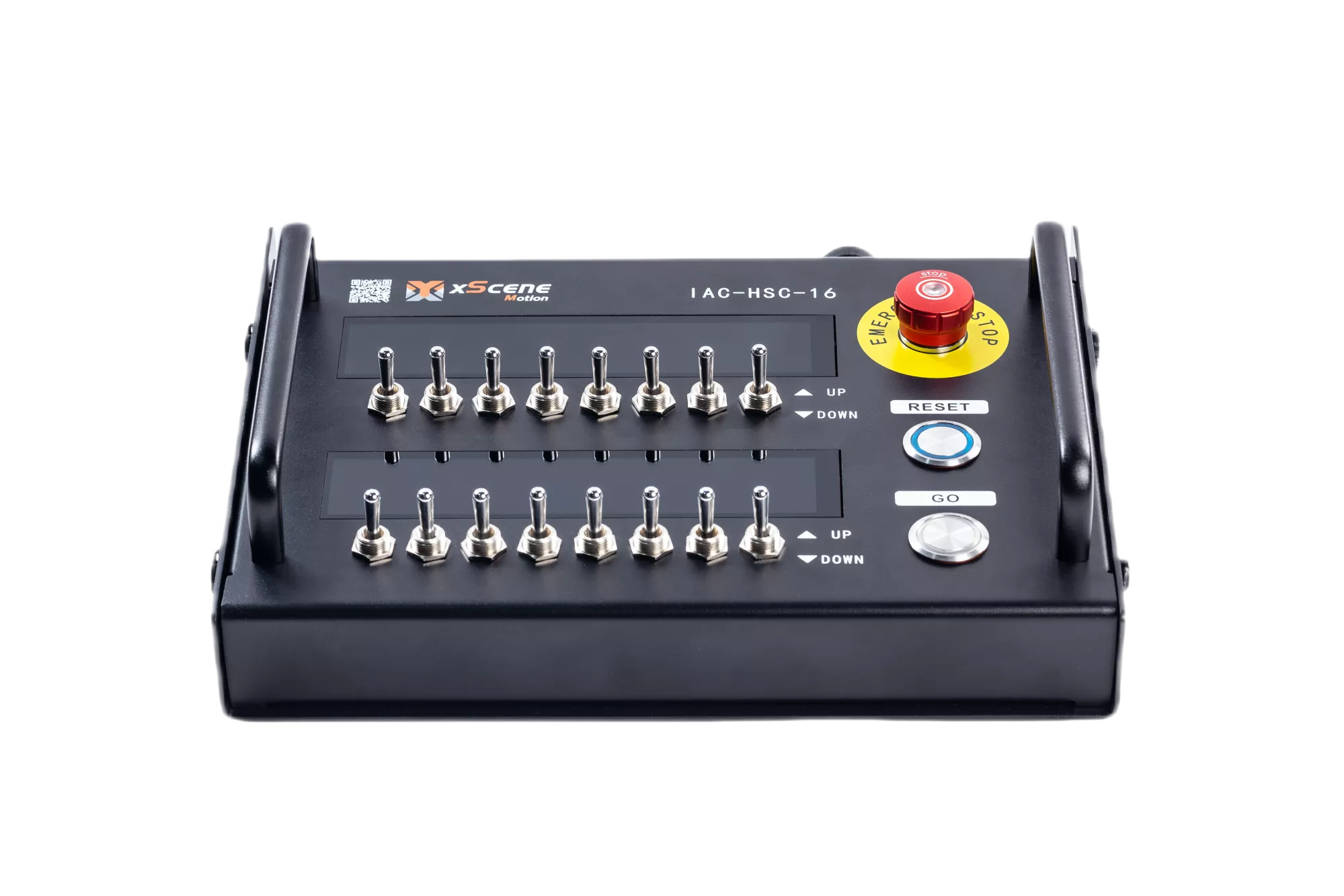

l Local controls: 8x3-position travel direction switch for easy local control
l Emergency stop: Meet SIL3 standards, include dual power supply contactors with a self-healing feature
l Control mechanism: Multiple units to be controlled by a single go button

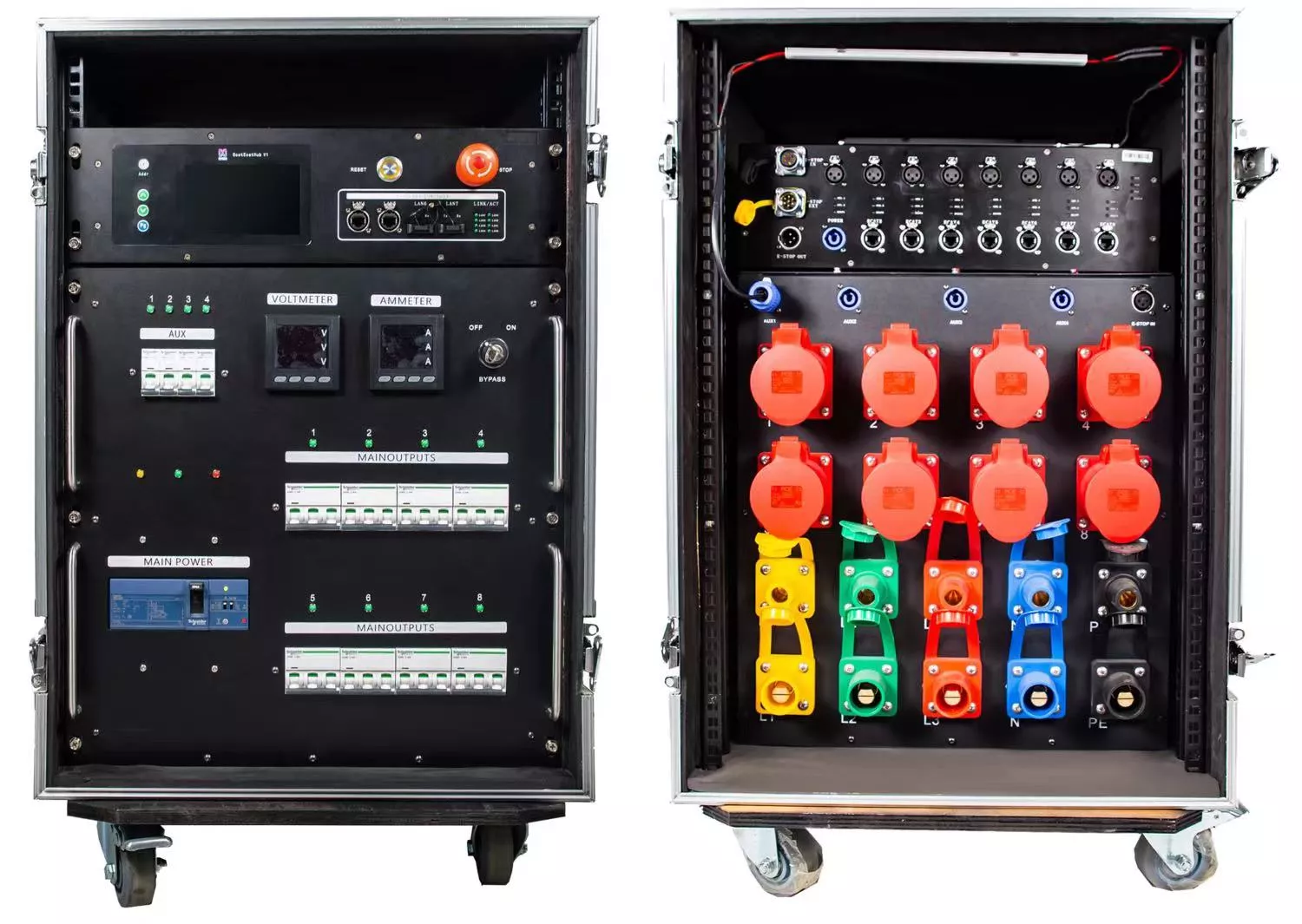

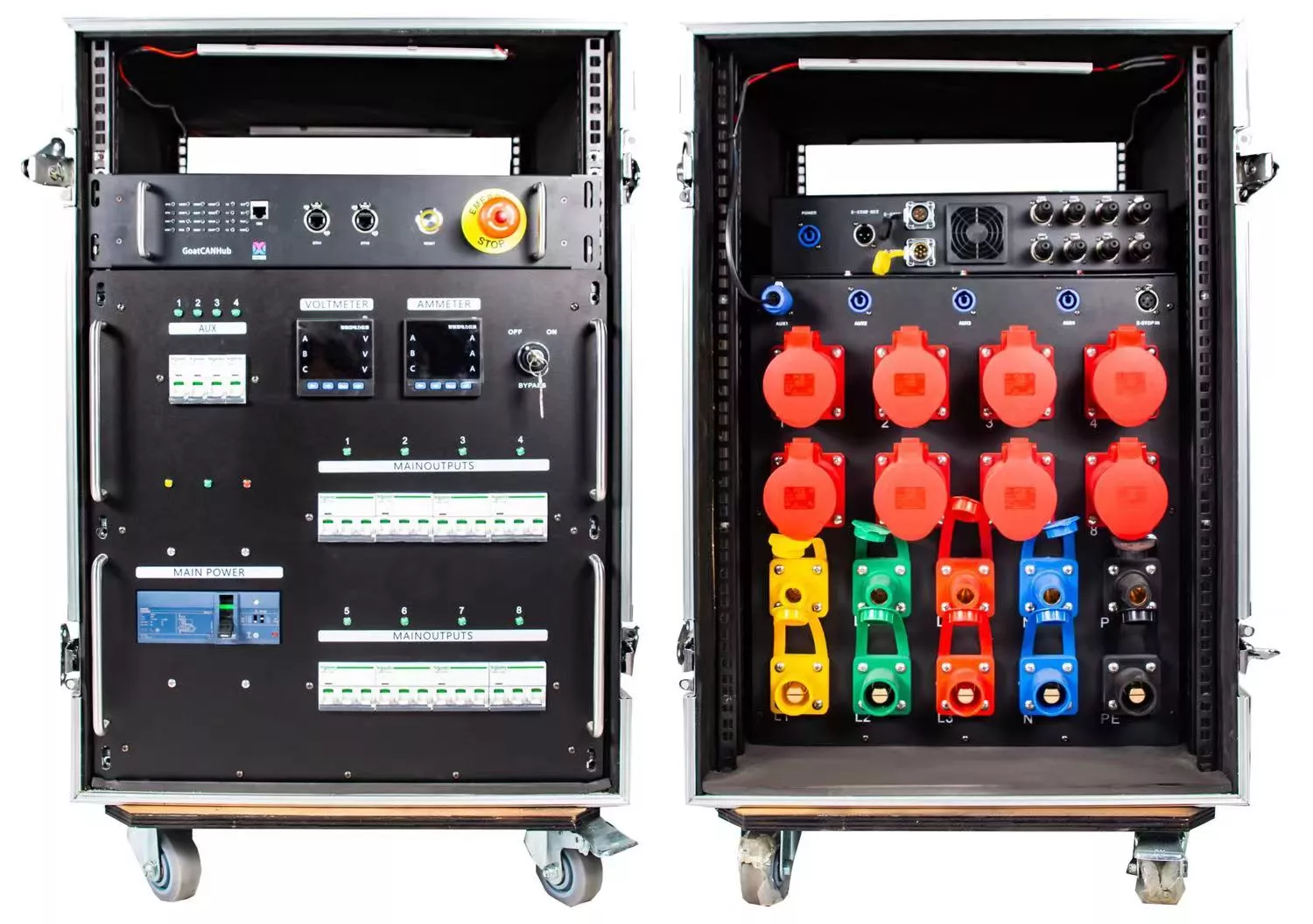

l Power supply quality inspection: Automatic phase reversal detection, supply voltage monitoring, power supply connections, and frequency assessment
l Optional upgrades: Ethernet connectivity, position encoder integration, limit switch compatibility, and KiloCel connectivity

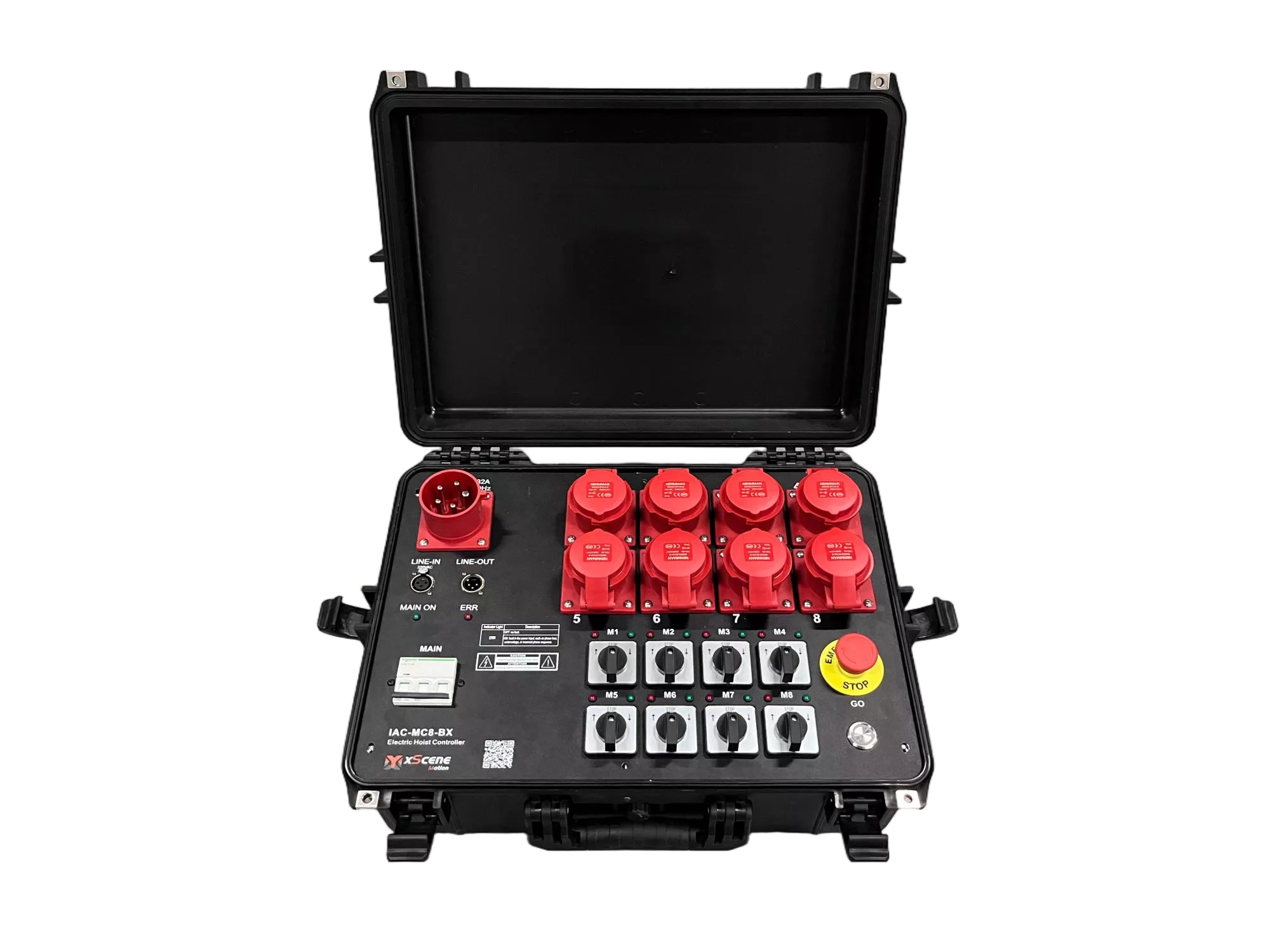

l Motor and direction control: 4 MCBs and 16 direction contactors with interlocking and mirror contact feedback
l Protection features: RCD protection and motor current protection
l Feedback display: A 7" IPS screen for real-time feedback display
l Load cell: Shackle form, support both wired and wireless configurations
l Safety factor: High safety factor, provide 10x safety protection
l Measuring range: 1T~5T, 150%F.S overload capacity
l Connections: Composite power supply, communication cables, single point and Daisy chain
l Controller: 1 controller controls up to 100 loadcells
l Monitoring interface: Multi-region monitoring page and various monitoring interfaces
l Data recording: Real time load monitor and real-time running data recording
l Safety protection: Protection of alarm, underload, and overload
l Maximum speed: Standard 4 m/min, fully customizable for project requirements
l Maximum load capacity: Up to 400 kg per motor, driven by a single 21 kW motor system
l Rapid deployment:
Quick setup for new venues via coordinate and parameter configuration, enabling fast relocation and commissioning
l Multi-system synchronized operation:
One control system supports multiple 3D flying systems operating simultaneously, enabling synchronized performances with multiple systems in the same venue
