Accessories
——

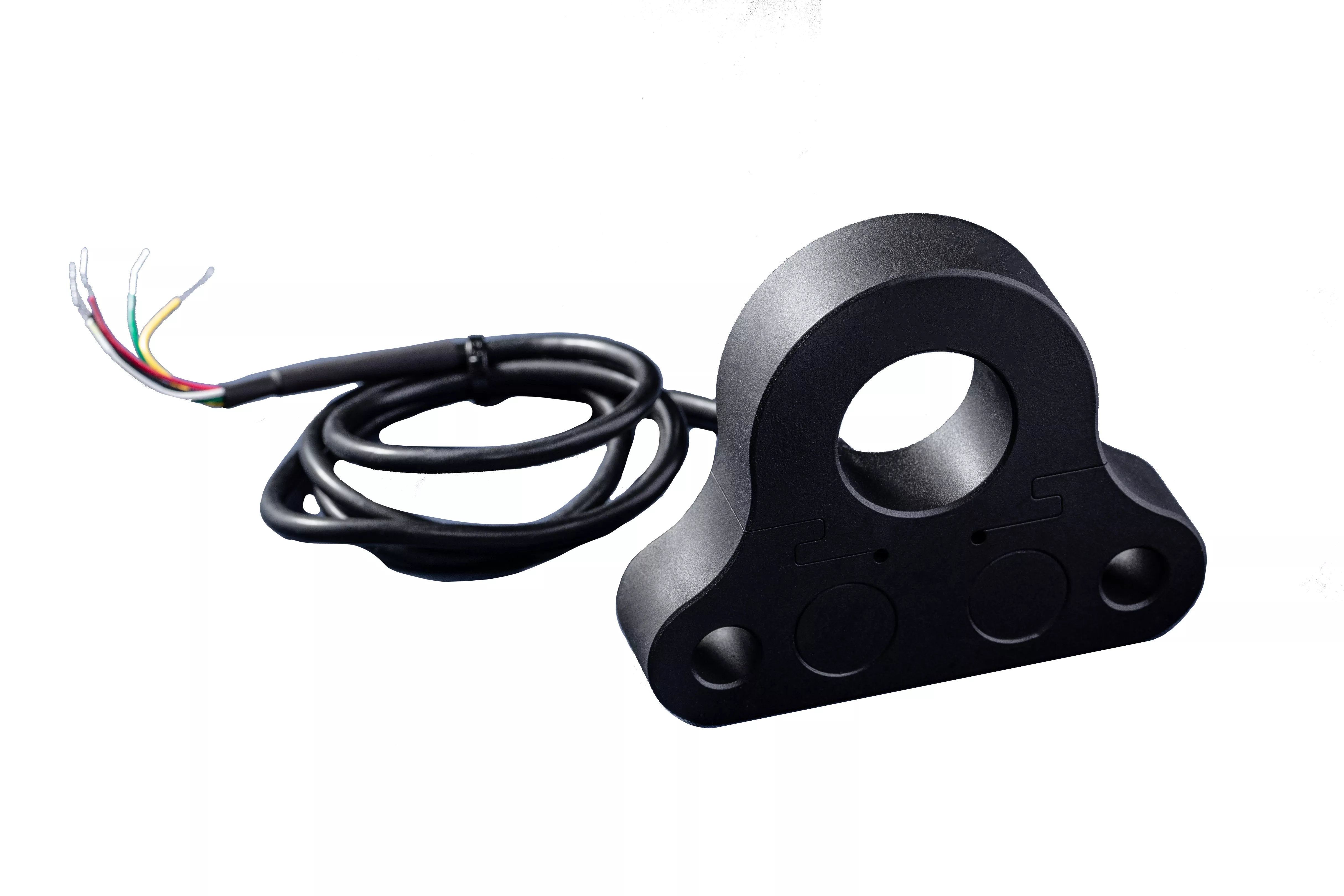

Technical Specifications

Rated Load: 4t
Combined Accuracy: 0.5% F.S
Sensitivity: 2.0mV/V
Cable Diameter: φ5
Operating Temperature: -20℃ to +60℃
Zero Balance: ±1% F.S
Insulation Resistance: >5000MΩ
Excitation Voltage: Recommended 10VDC
Safe Overload: 120% F.S

Wiring Definition

Input +: Red
Input -: Black
Output +: Green
Output -: White

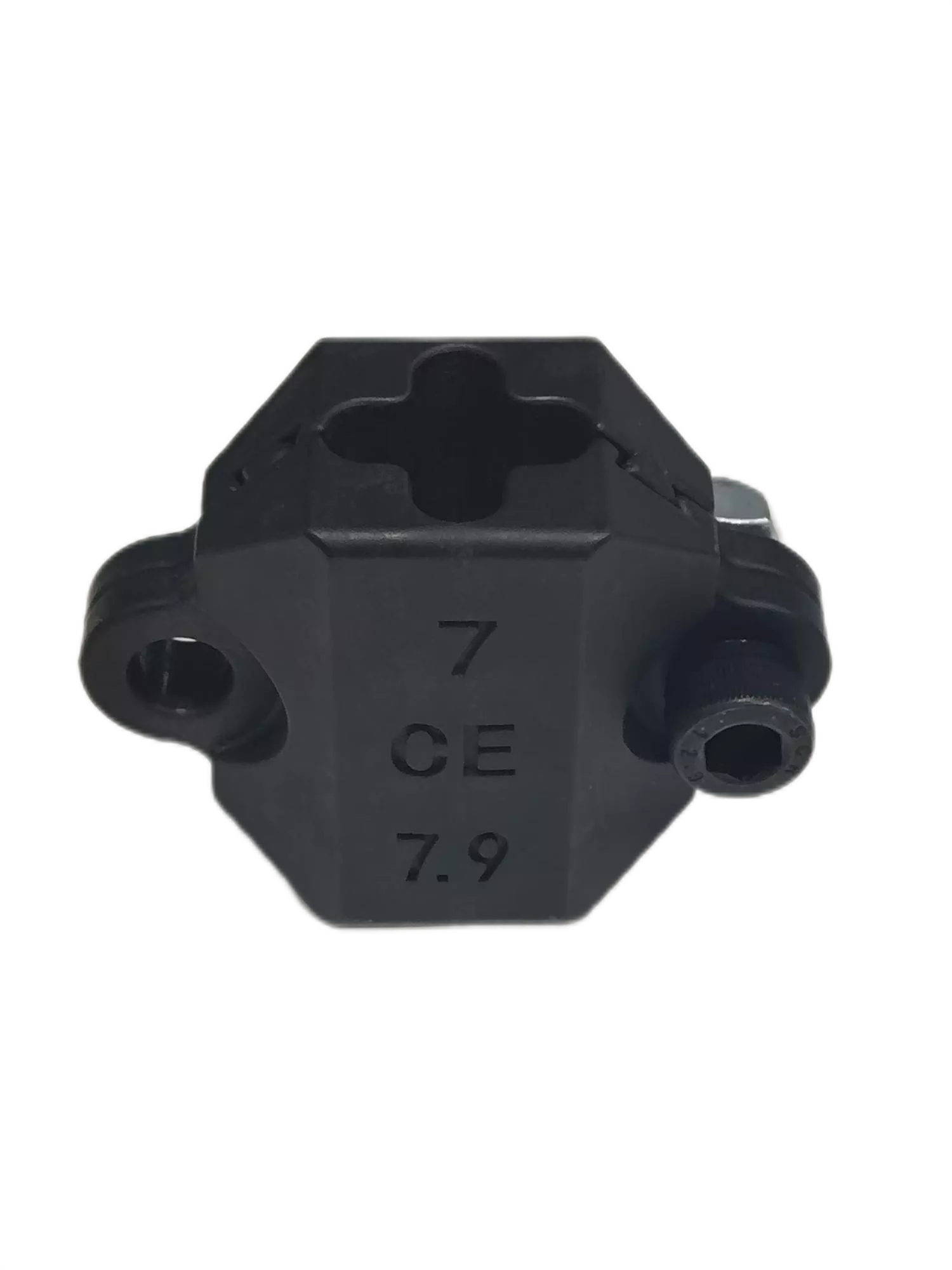

Specifications
Dimensions: 82 × 60 × 35 mm
Weight: 125g
Material: Nylon

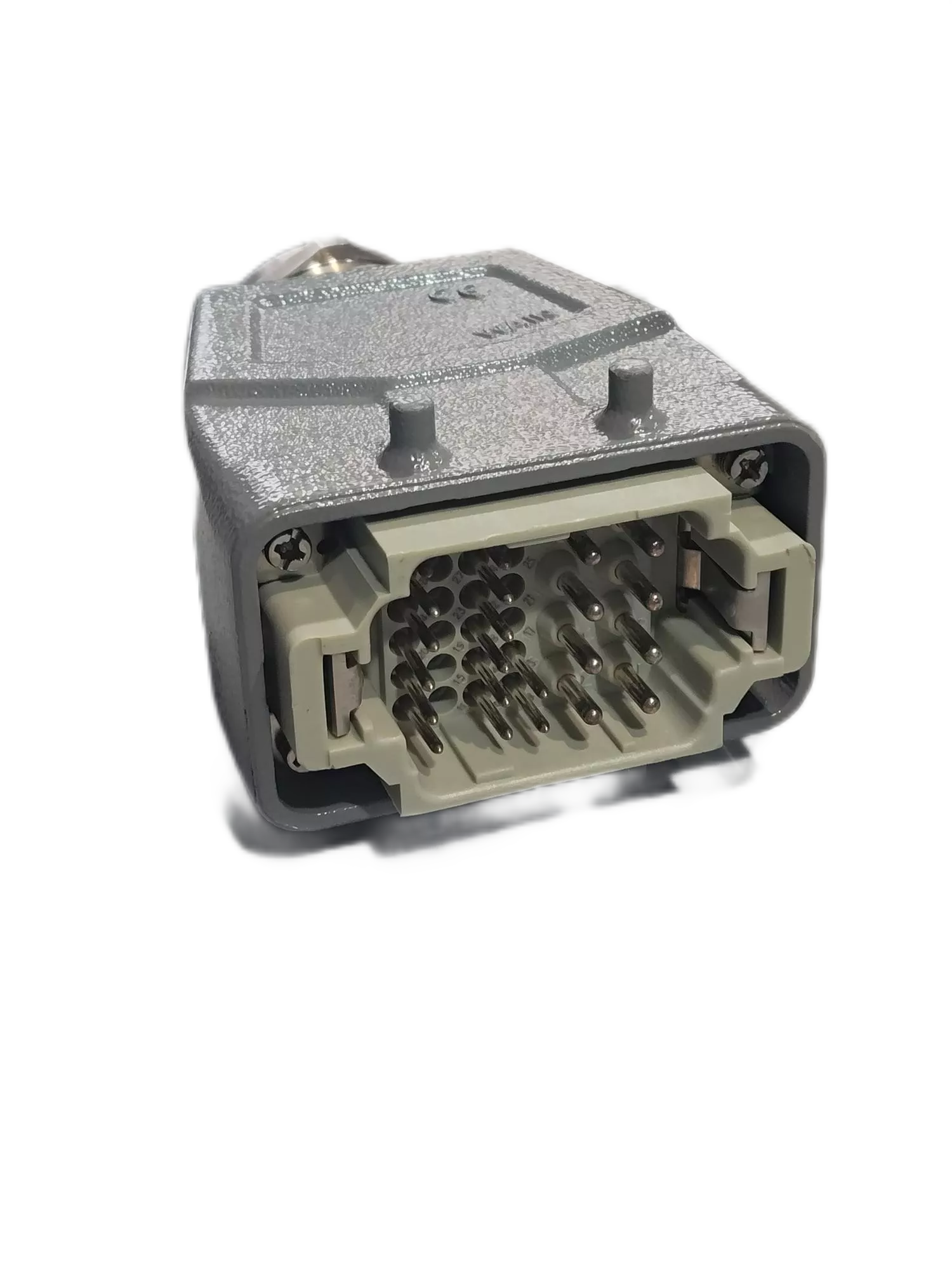

Specifications
Locking Type: Double Latch
Thread: M25
Interlock Method: Metal Elastic Press Fit
Material: Zinc-Plated Iron
Sealing Element: NBR
Flame Retardant Rating (per UL94): V0
Operating Temperature Range: -40℃ to +125℃
Protection Rating: IP67
Number of Pins: 8 + 24
Grounding Function: Supported

Rated Current: 16A / 10A

Rated Voltage: 400V / 250V
Rated Impulse Voltage: 6 kV / 4 kV
Insulation Resistance: ≥10¹⁰ Ω
Contact Resistance: ≤3 mΩ / ≤1 mΩ
Dimensions:73 × 57 × 72 mm

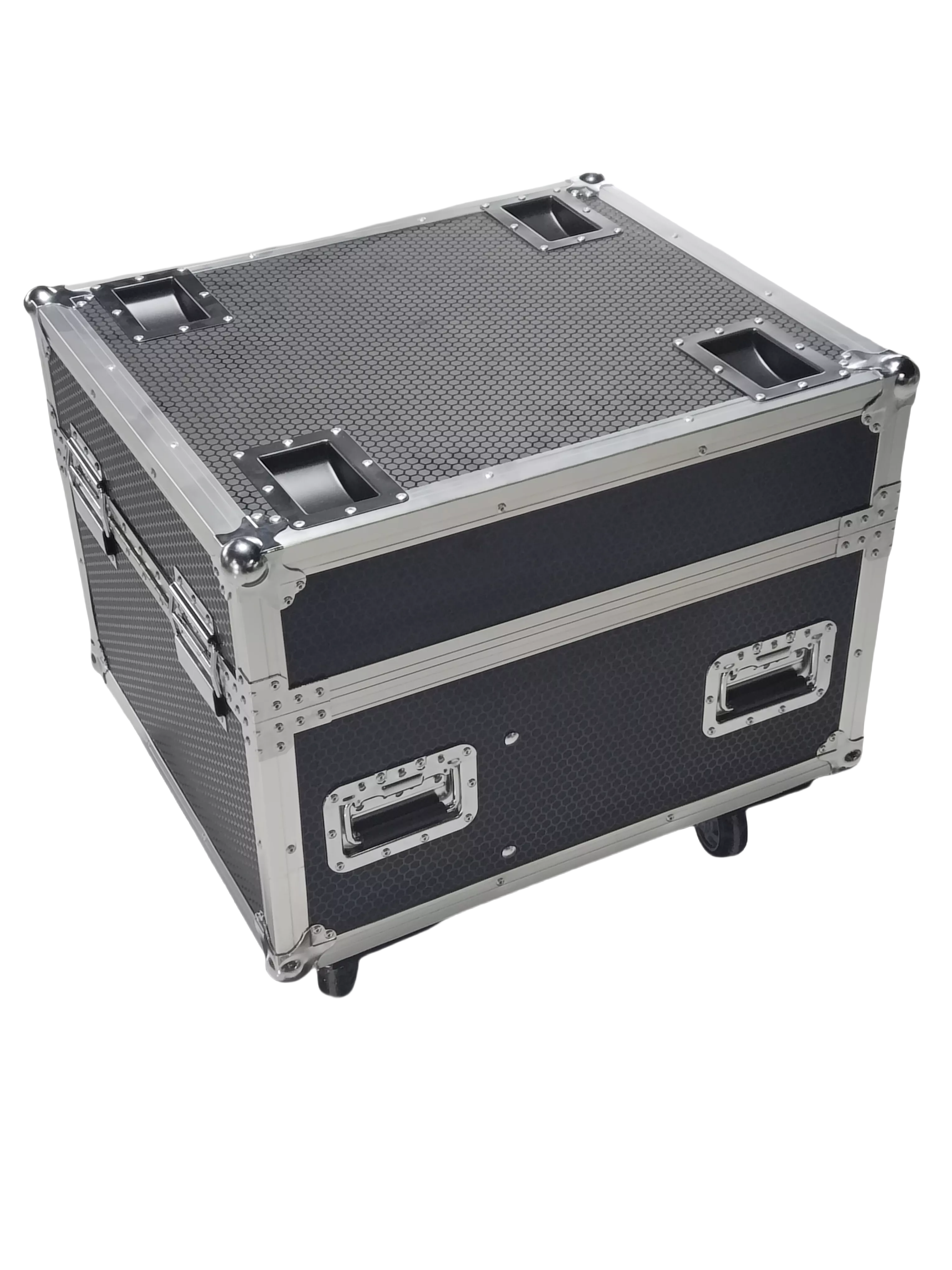

Specifications
Hinge: 100mm
Hinge Strip: Wide
Angle Aluminum: 35°
Caster: 1-inch Blue Silent with Diagonal Brake
Bracket:
35mm Extended Right-Angle
Corner Protector: 50mm Square
Caster Housing:
Edged Center Type
Partition Angle Iron: 12mm Corrugated Aluminum
Handle:
Slot-Cut
Lock: Cut-In with Spring
Fireproof Board:
12mm Orange Soccer-Grain
Dimensions:
670 × 630 × 560 mm 660 × 520 × 550 mm
