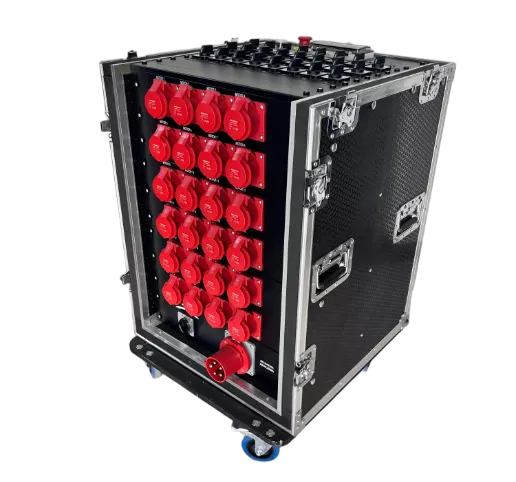

MC Hoist Control System
——
Key Features
——

| Main power input: Three-phase five-wire 400VAC, 50/60Hz, 5P-32A CEE male connector with phase-reversal function
| Manual phase alignment for main power input
| Phase-loss and phase-sequence protection for main power input
| Status indication for power input and output selection

| Group control connection interface using XLR-3 connectors, 1 in [female], 1 out [male]
| 8 CEE outputs, one-to-one configuration;
| Optional group access or disconnect function;
| Optional one-key output phase switching;
| Optional leakage protection with leakage detection current of 30mA;
| Portable case design for high convenience.
