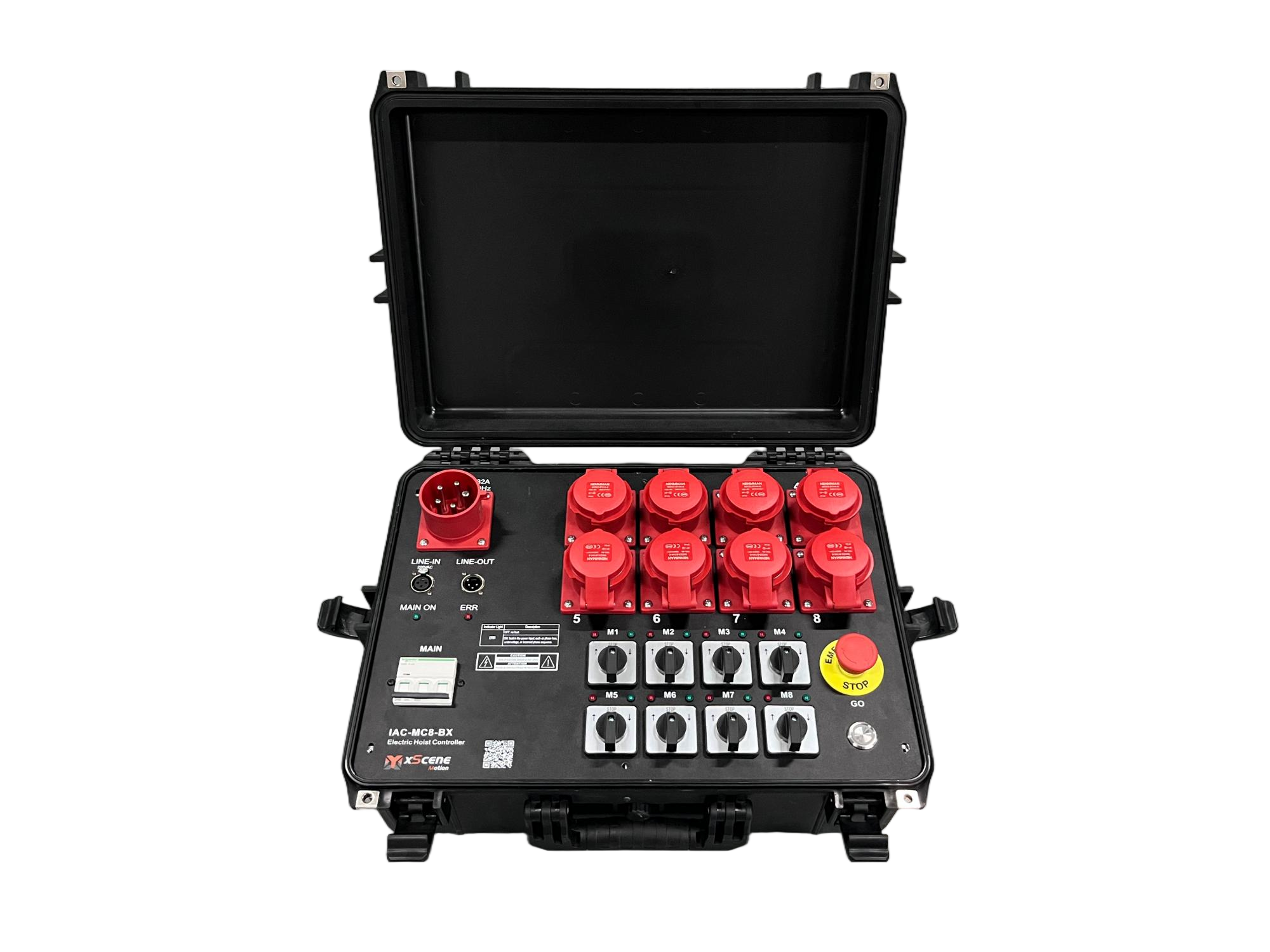

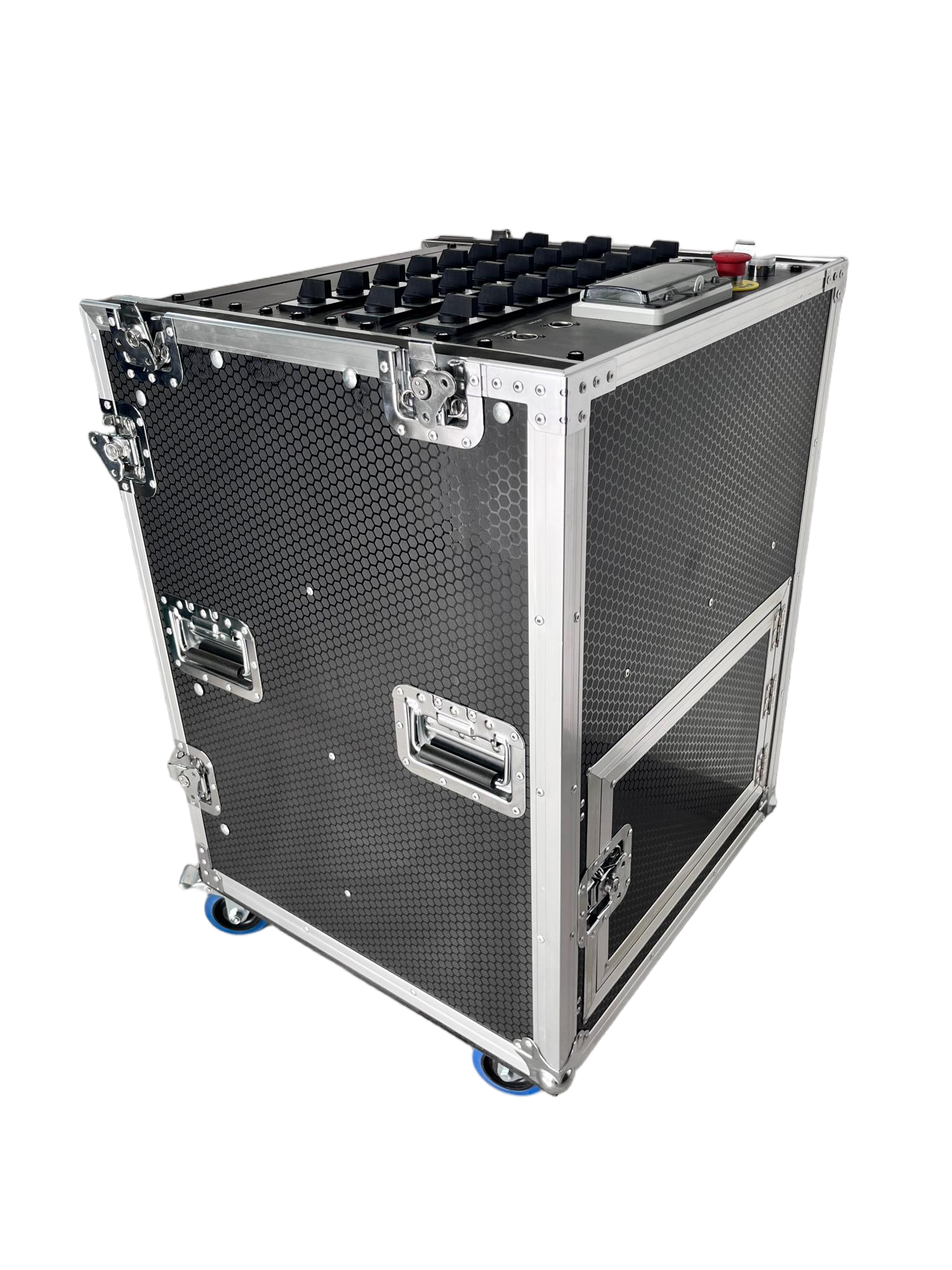

MC Control Box

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
+86 028-81135561
FeaturesSpecifications

Main Features

a) Main power input: Three-phase five-wire 400VAC, 50/60Hz, 5P-32A CEE male connector with phase-reversal function;
b) Manual phase alignment for main power input;
c) Phase-loss and phase-sequence protection for main power input;
d) Status indication for power input and output selection;
e) Main power input equipped with D32A circuit breaker, breaking capacity 6kA, 400VAC, 50/60Hz;
f) Group control connection interface using XLR-3 connectors, 1 in [female], 1 out [male];
g) 8 CEE outputs, one-to-one configuration;
h) Optional group access or disconnect function;
i) Optional one-key output phase switching;
j) Optional leakage protection with leakage detection current of 30mA;
k) Portable case design for high convenience.


Parameter Description

FunctionDescription
AC Power SupplyConnector Type: 5P-32A CEE industrial plug, male; with manual phase reversal function.   Power: Three-phase five-wire 400VAC, 50/60Hz; L1+L2+L3+N+PE, 32A.
CEE OutputConnector Quantity: 8, one-to-one.   Connector Type: 4P-16A CEE industrial socket, female; U+V+W+PE.   Output Limit: Single channel ≤5A; every 4 consecutive channels ≤16A; total output of all channels ≤32A.   Recommended Cable Length: Dependent on cable impedance, voltage drop <5%.
Group Control ConnectionXLR-3 connectors.   Recommended Cable Length: ≤100m between grouped units.
Output Selector SwitchQuantity: 8, one-to-one control.   Type: 20A reversing switch.
Emergency Stop SwitchLocal E-stop. Once pressed, the main power circuit of the unit and the group control signal from LINE-OUT to downstream units are immediately cut off.
Run ButtonLocal group run button. When using group control connections, the button affects this unit and all downstream units connected via LINE-OUT.
Power Input DetectionIn the event of an input detection fault (ERR indicator on), the main power circuit of this unit and the group control signal from LINE-OUT to downstream units are disabled.
Status IndicationIndicators for main power input, phase-sequence and phase-loss detection, and output selection status.
Group Selection SwitchOFF: Group function disabled, upstream and downstream connections unaffected.   ON: Group function enabled.
Output Phase SwitchOne-key phase switching for all outputs of this unit, effective locally only.
Leakage ProtectionThe leakage detection current is 30mA; in the event of a leakage, the main power is disconnected.
Weight<12kg
Dimensions565mm × 416mm × 222mm
